Byson Fixed Louver Grilles 1.5in, Aluminum with Bird Screen

Perfect for exterior and interior uses.

•  Applications
  • The ideal choice when preventing rain, snow and wind ingress is a priority  in outdoor exhaust usage

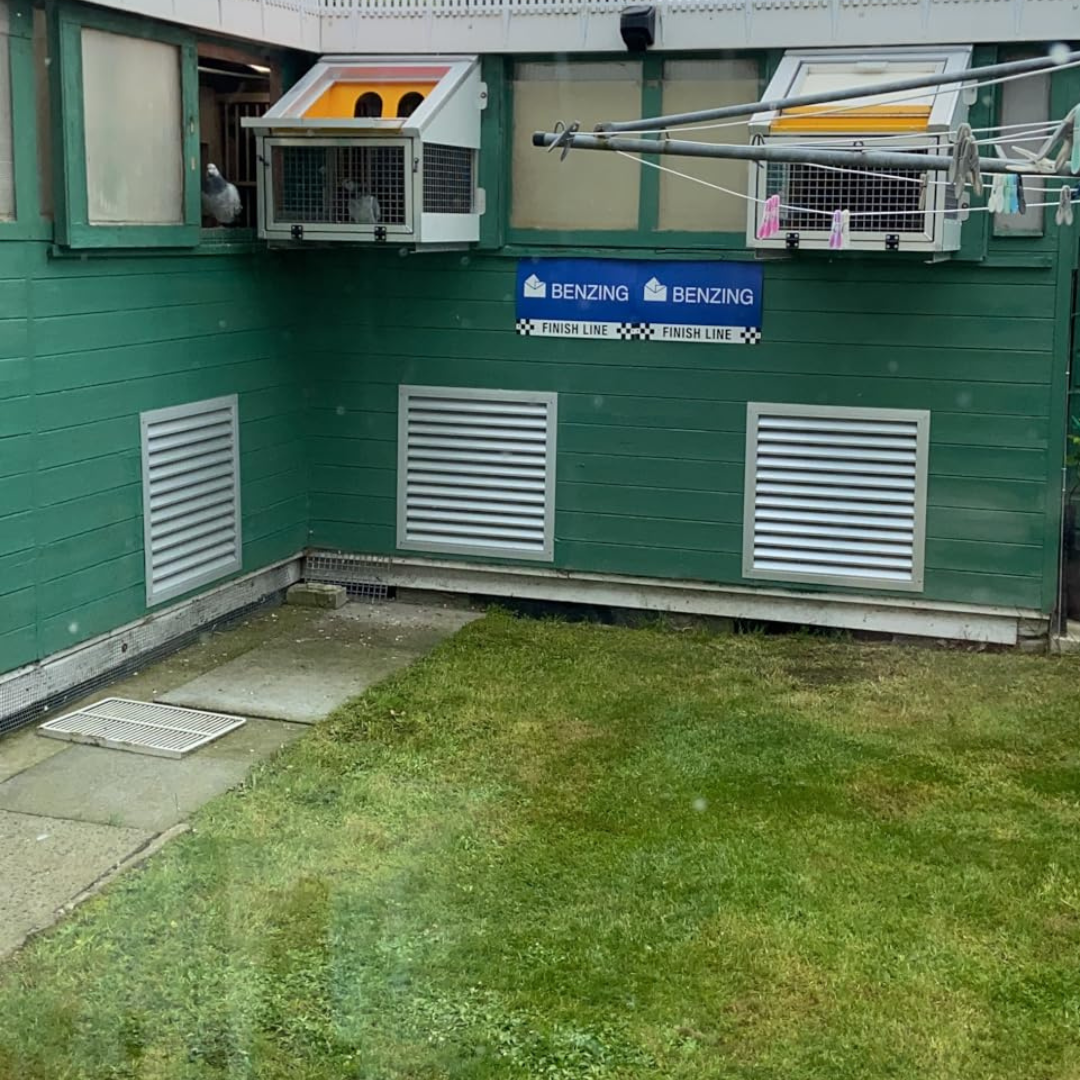

  • Use in your residential, commercial or industrial spaces to ventilate ducting, crawlspaces, utility rooms and more for air exhaust or intake / return
  • For installation in walls, ceilings, or doors of any construction - eg brick, cement, metal, wood, etc

• Heavy Duty, robust aluminum construction
  • Frame thickness of 3.0mm
  • Louver thickness of 2.0mm
• Multiple Finish Options - Beautiful aesthetic, with improved scratch, rust / corrosion and wear resistance
  • Anodized Aluminum (Silver)

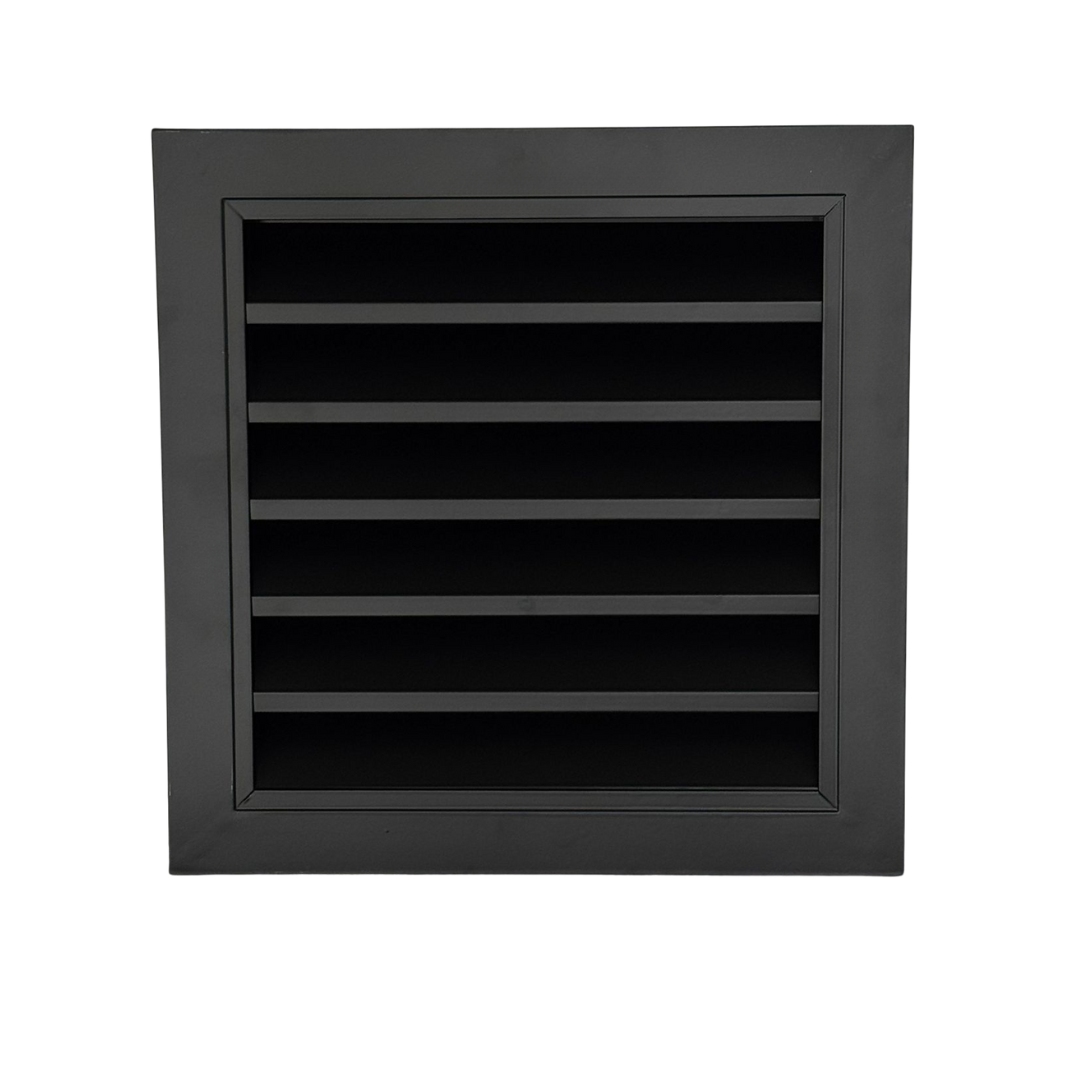

  • Powder Coated - Black
• Weather Proof - Extra deep and steeply angled louvers for the highest protection from rain, snow and wind ingress

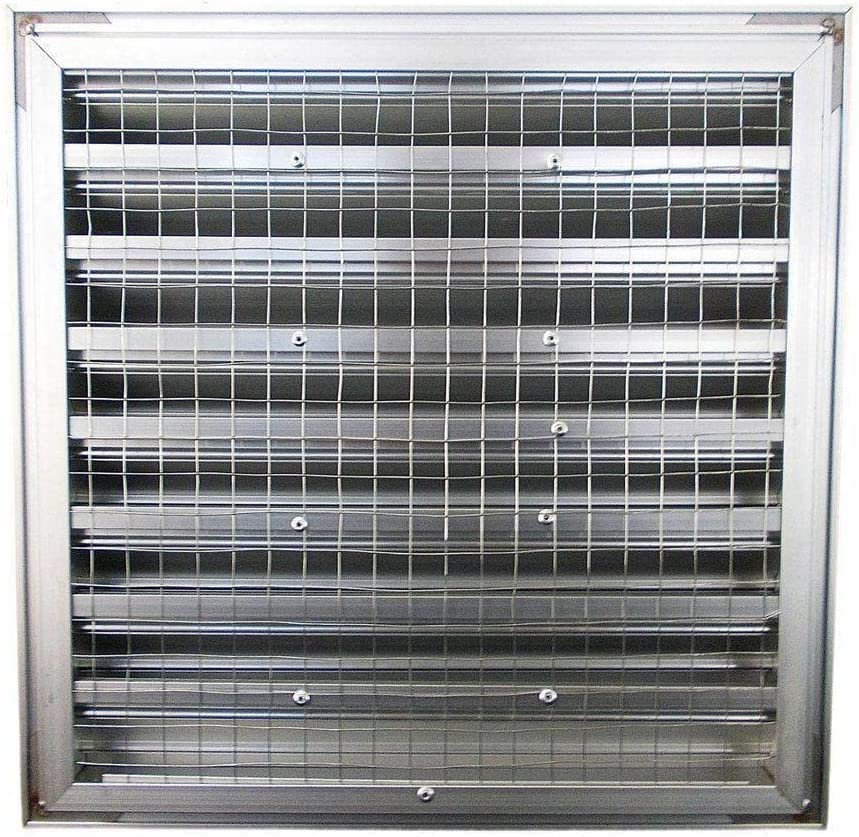

• Pest Proof - Bird mesh screen made of galvanized steel keeps pet and insects out
• Noise free - Made of rigid aluminum frame and louvers to minimize vibration
• Secure Packaging - Shrink wrapped and packed snug in a cardboard box

Sizing

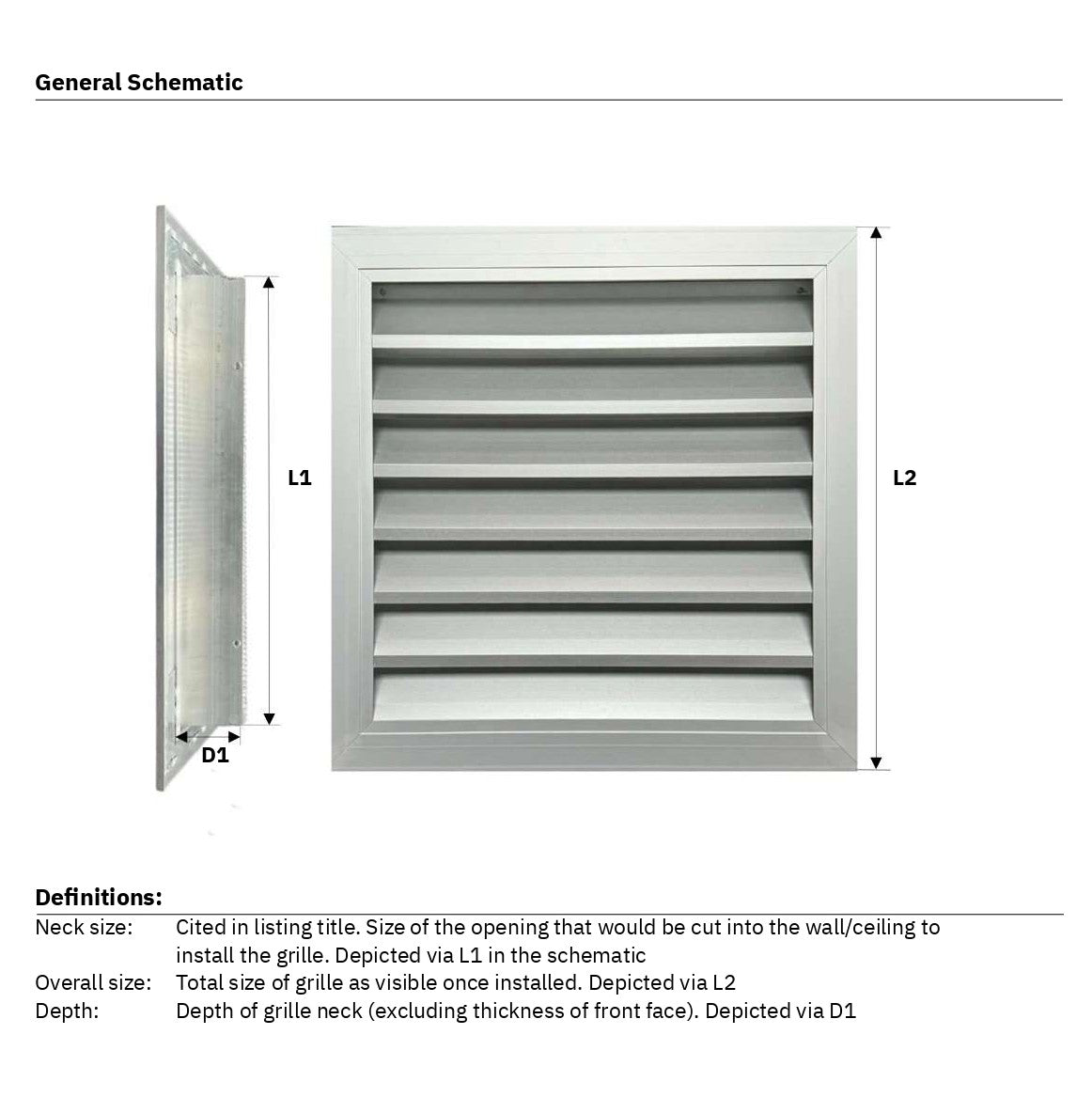

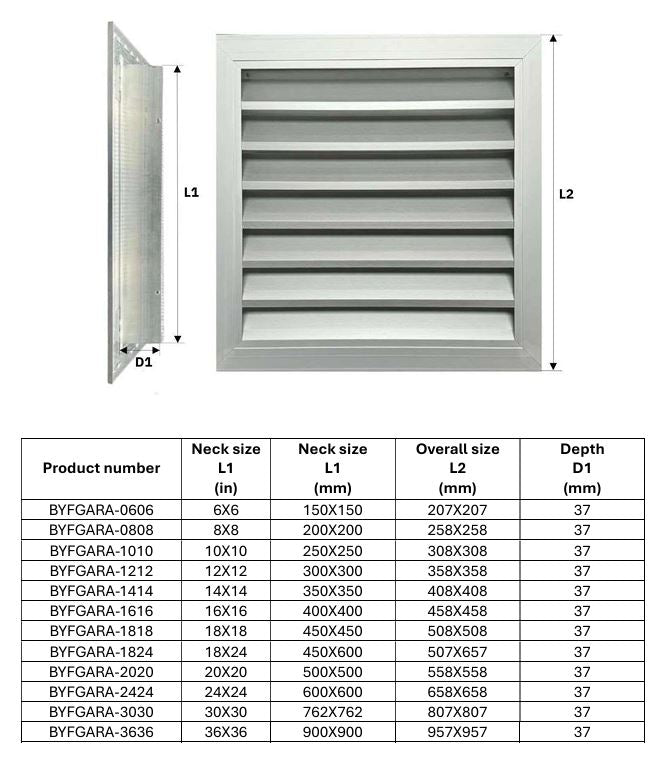

See schematic (in images) or Specification Sheet for complete sizing information.

Sizes listed are defined as "Neck Size". This is the opening size / ventilating area once the grille is installed. It is also the size of cutout required in the wall / ceiling / door to install the grille.

Installation

Self tapping screws (not included) can be used to drill directly into the grille face frame or neck, depending on preference, and fix it to the surface (wall or wooden frame) as required.

Shipping

• Due to large size, 30x30 inches and 36x36 inches sizes require shipping to be quoted
• All other sizes ship via standard shipping (automatically applied at checkout)

Bulk Pricing

• 1-4 grilles: retail price
• 5-49 grilles: 10% off retail
• 50-99 grilles: 15% off retail
• 100+ grilles: 20% off retail

Downloads

• Specification Sheet
