Byson Tiled Panel Kit with Magnetic Catches

Description

The Byson Tiled Panel Kit is based on a unique universal design, utilizing a set of magnetic catches that can be installed to create an access panel out of any size or type of tile (or similar). The kit includes all parts and hardware required.

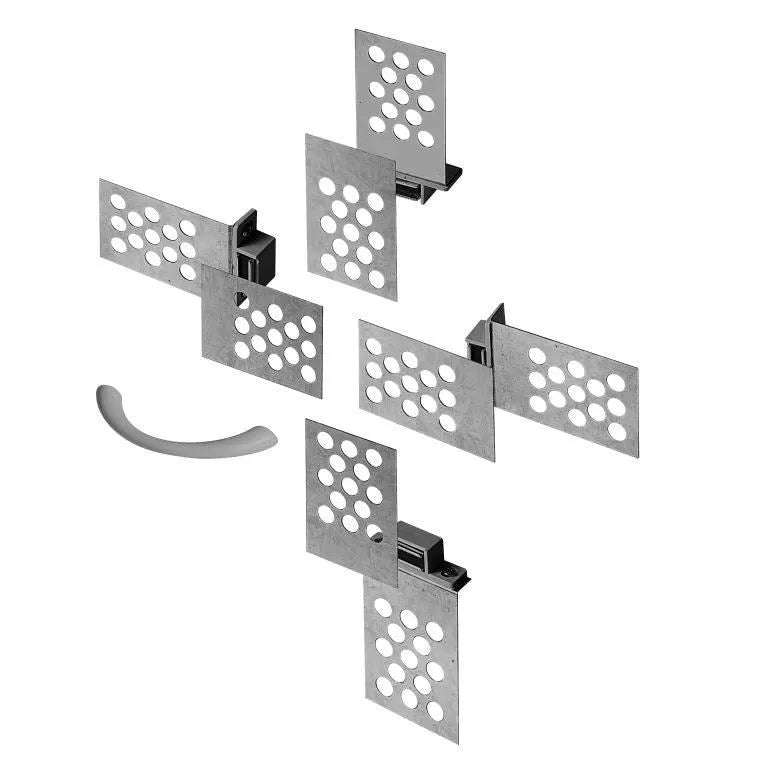

Includes

• 4x Magnetic Catch sets (1 magnet and 1 matching plaque per set)
• 1x Handle
• 2x Handle Mounting Screws

Features

• Highly versatile - turn any size or type of tile (or similar) into an access panel door
• Easy to install - just use glue
• Conformant with provisions of directive 2001/95/WE of European Parliament and European Council of 3rd December 2001 on general product safety
• Made in Poland

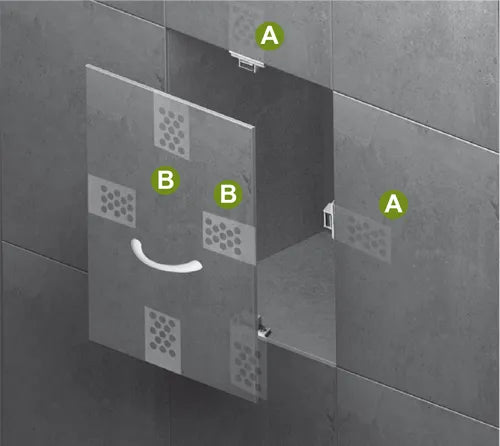

Installation Guidance

1. Glue / cement or screw the plaques to the inner walls of the recess (1 on each side)
2. Glue / cement the magnets to the tile intended for use as the panel door, in positions corresponding to the plaques
3. Drill holes in panel door tile matching the provided handle
4. Install the handle
