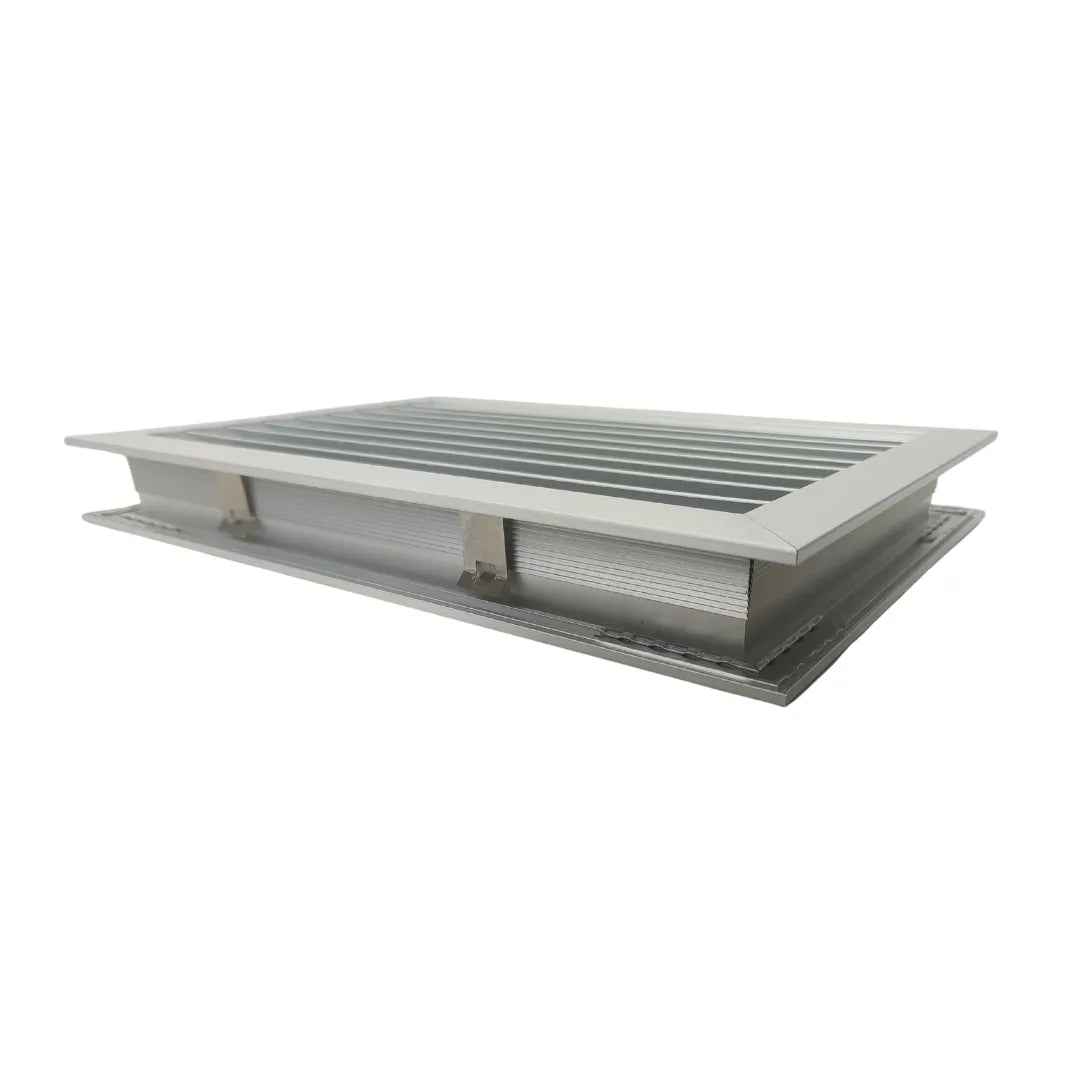

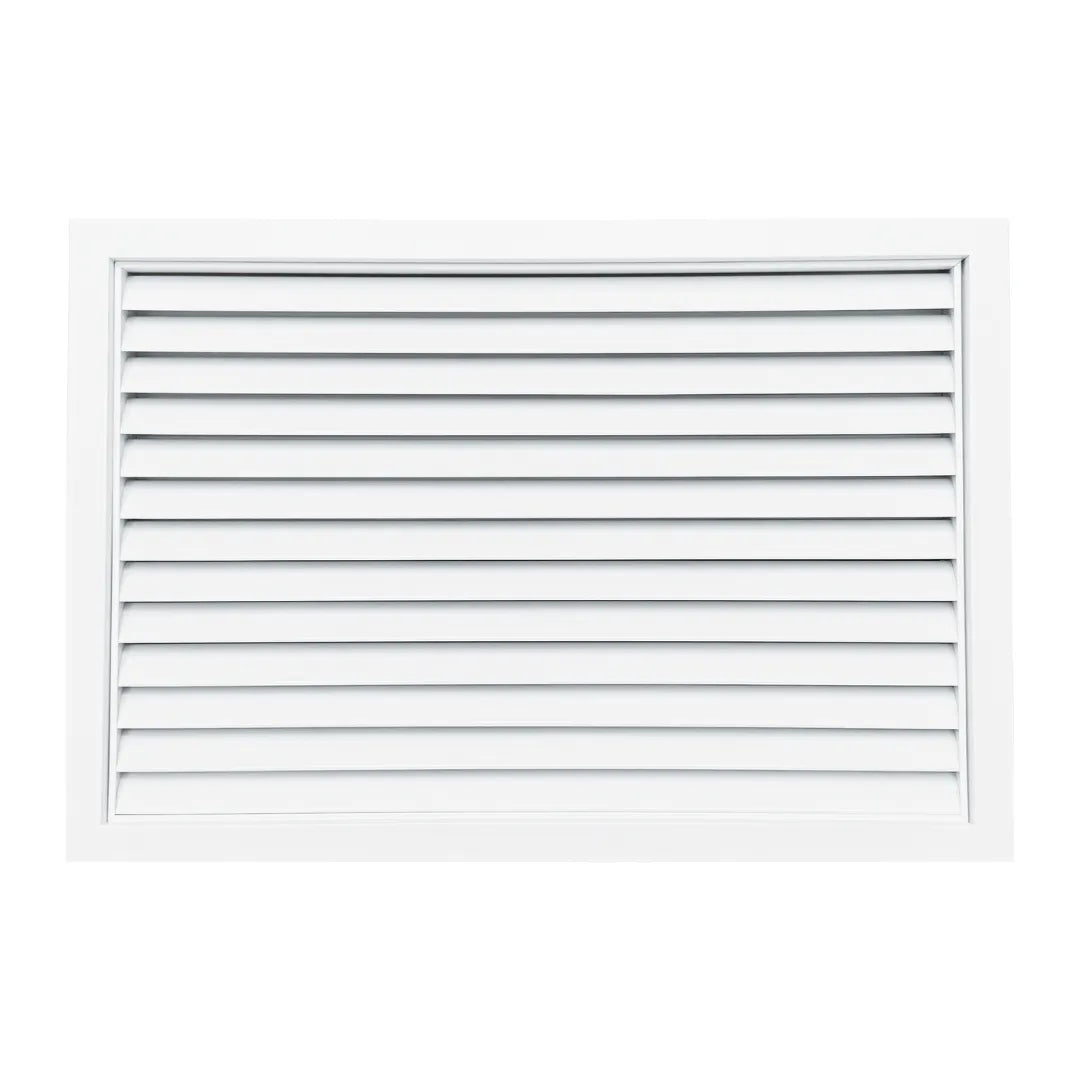

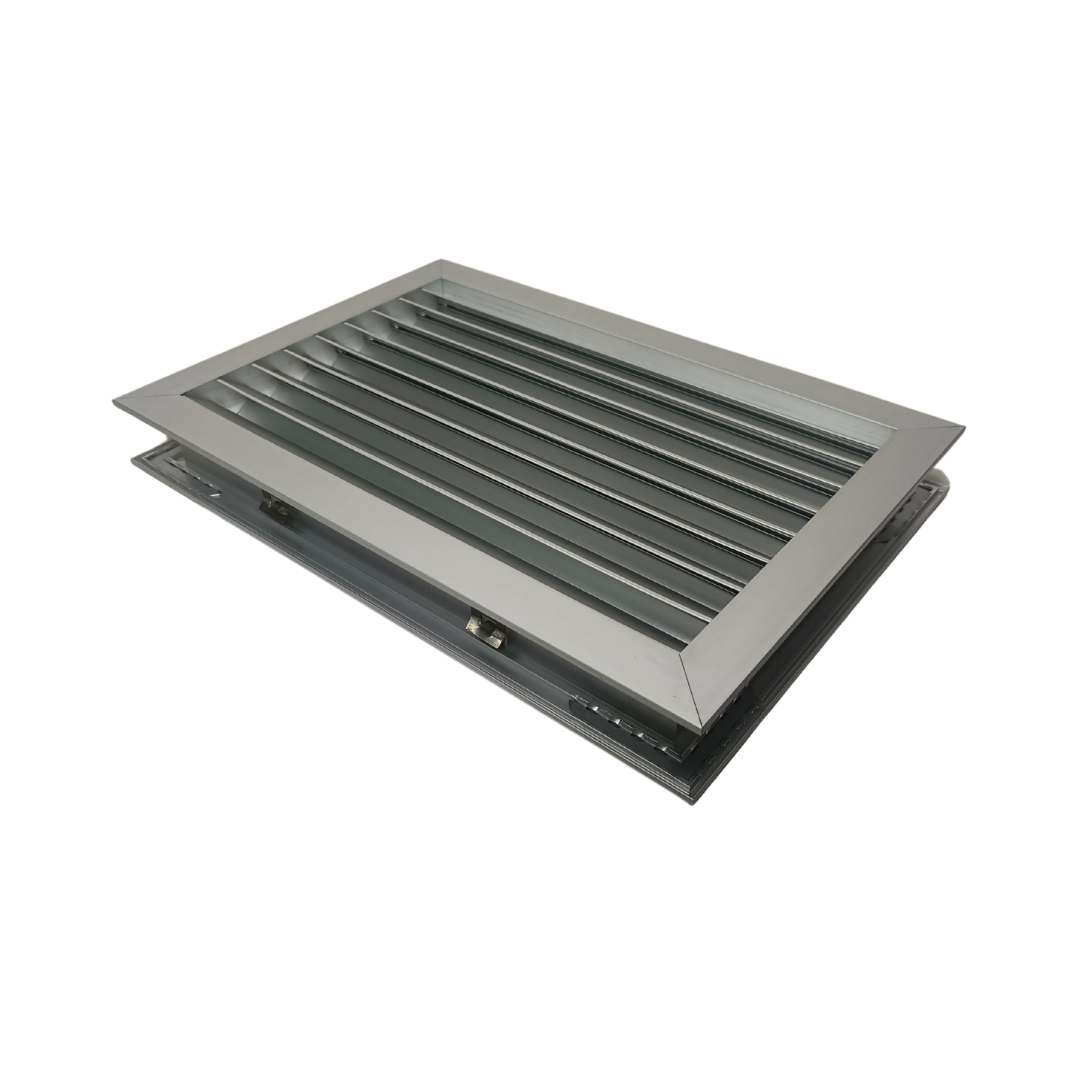

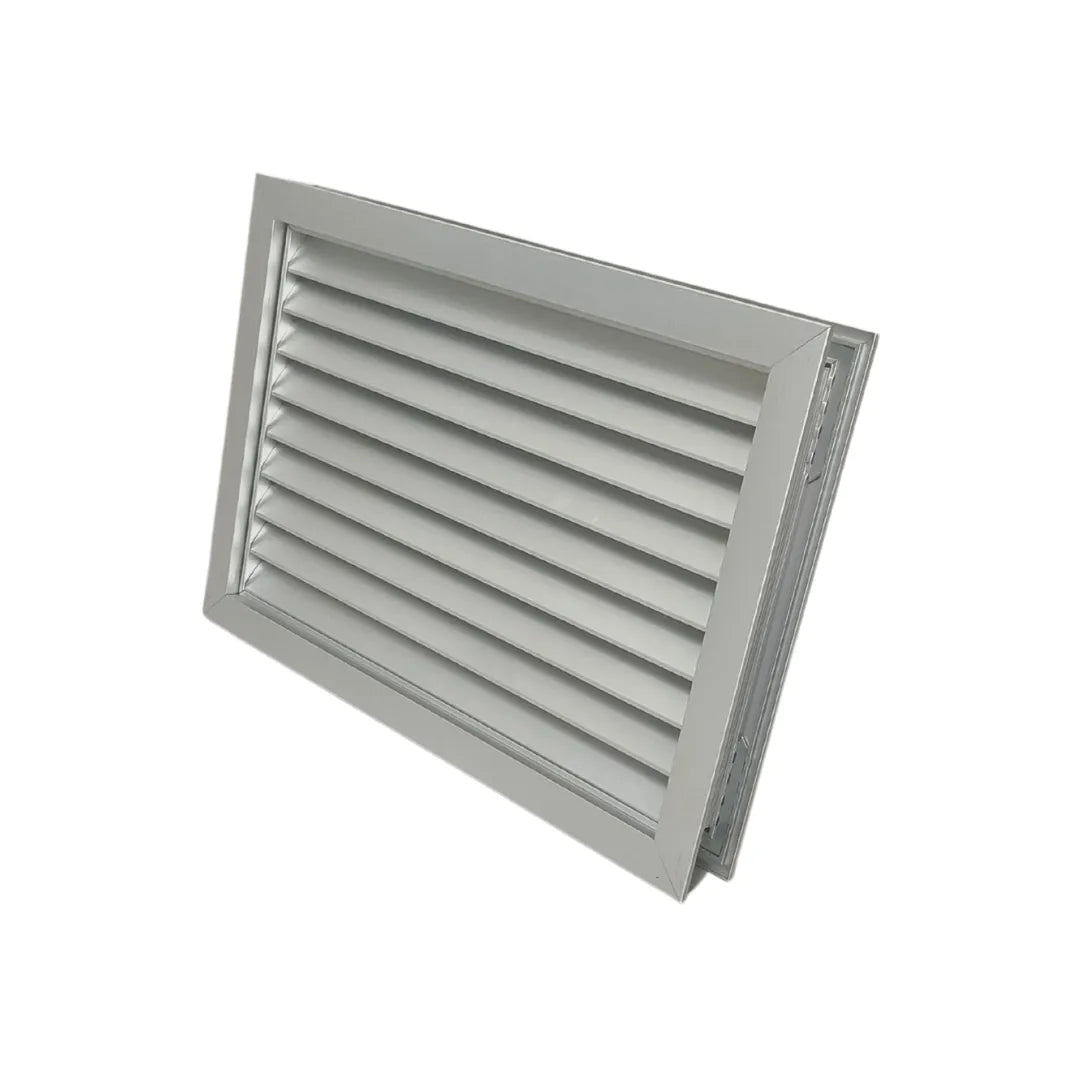

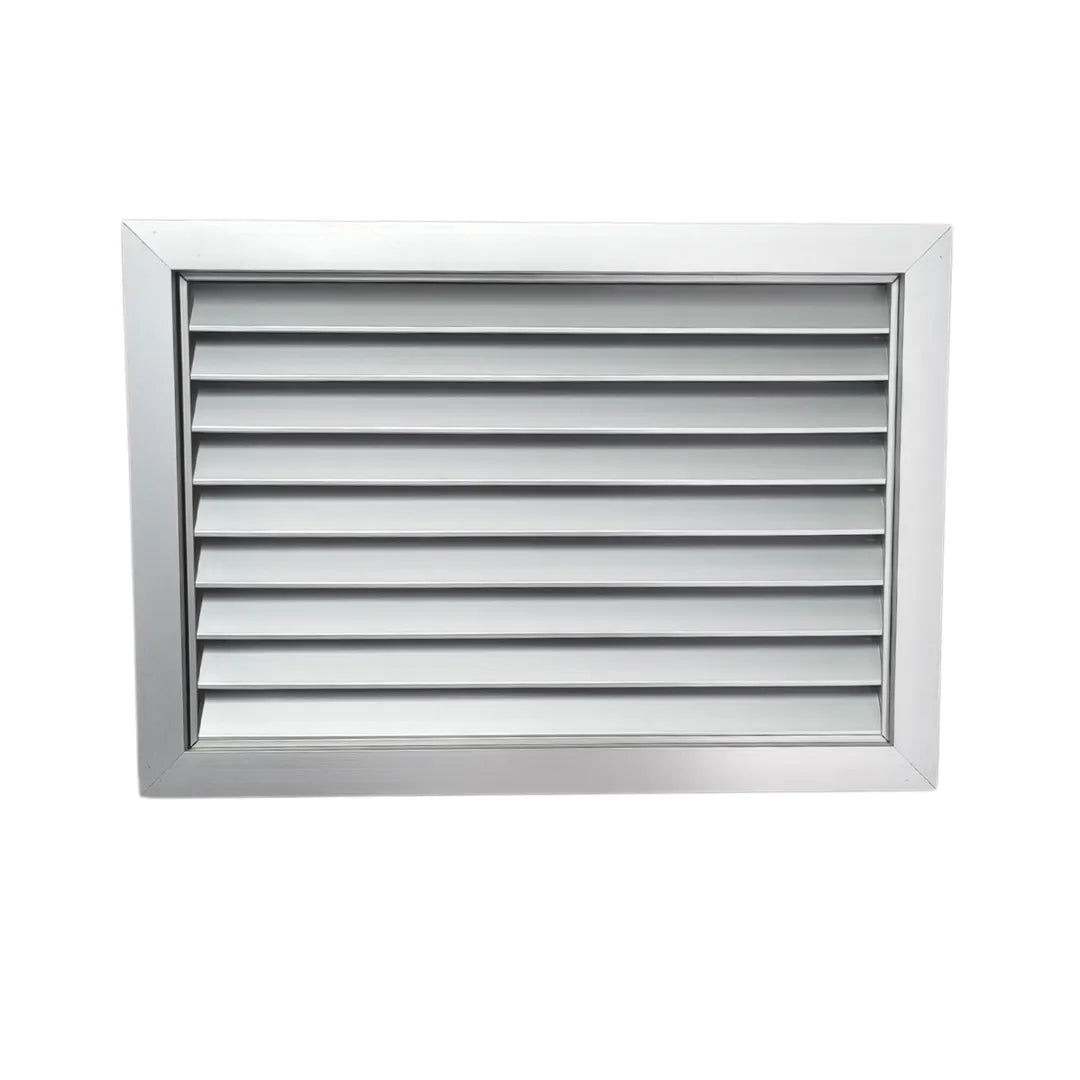

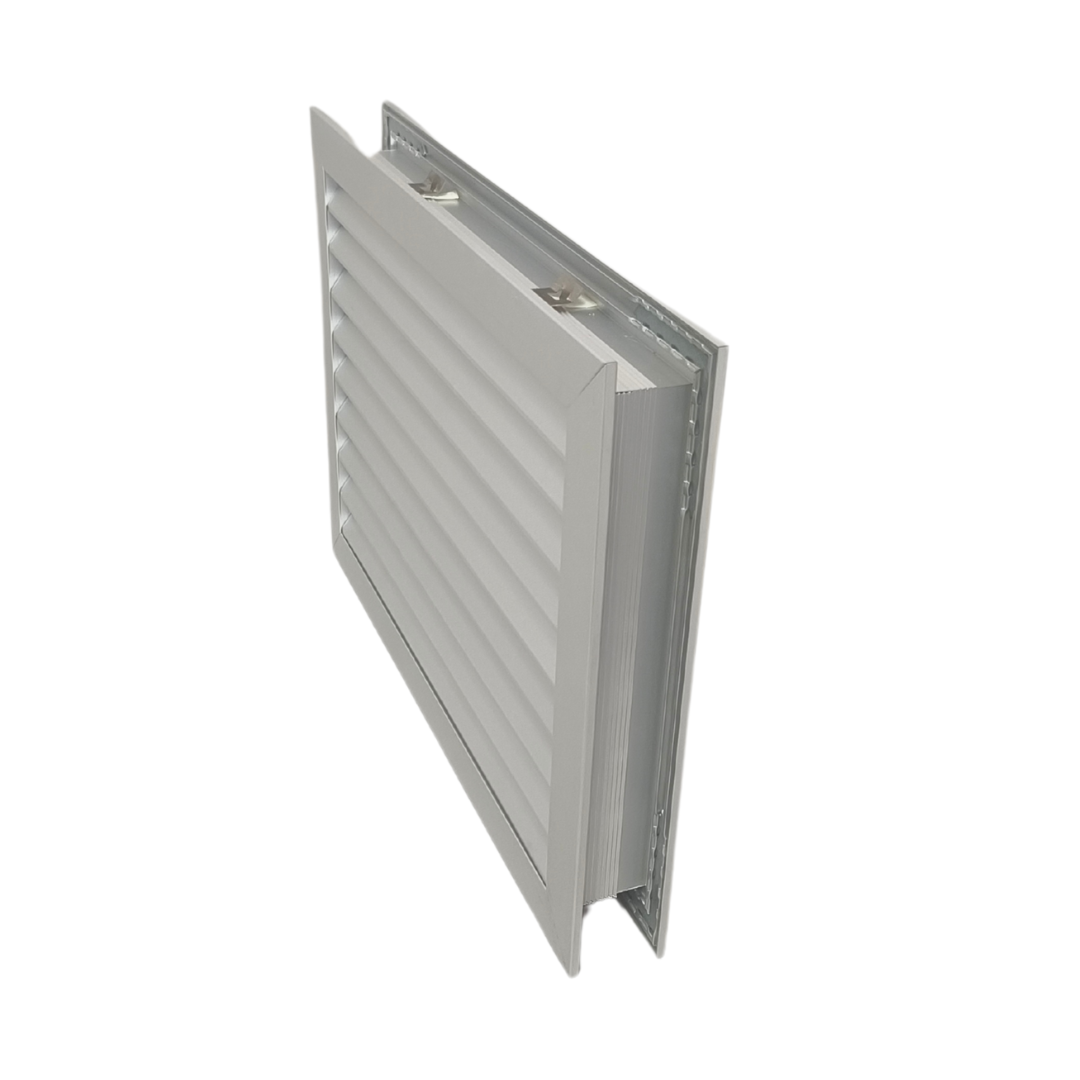

Byson Door Louver Grilles, Anodized Aluminum

•  Applications
  • Use in your residential, commercial or industrial spaces to ventilate rooms while maintaining privacy and security
  • For installation in doors of any construction - eg brick, cement, metal, wood, etc

  • Suitable for doors starting from 1.25" up to any thickness
• Heavy Duty, rugged and robust aluminum construction - 1mm thickness
• Anodized Aluminum Finish - Beautiful aesthetic, with improved scratch, rust / corrosion and wear resistance

Installation

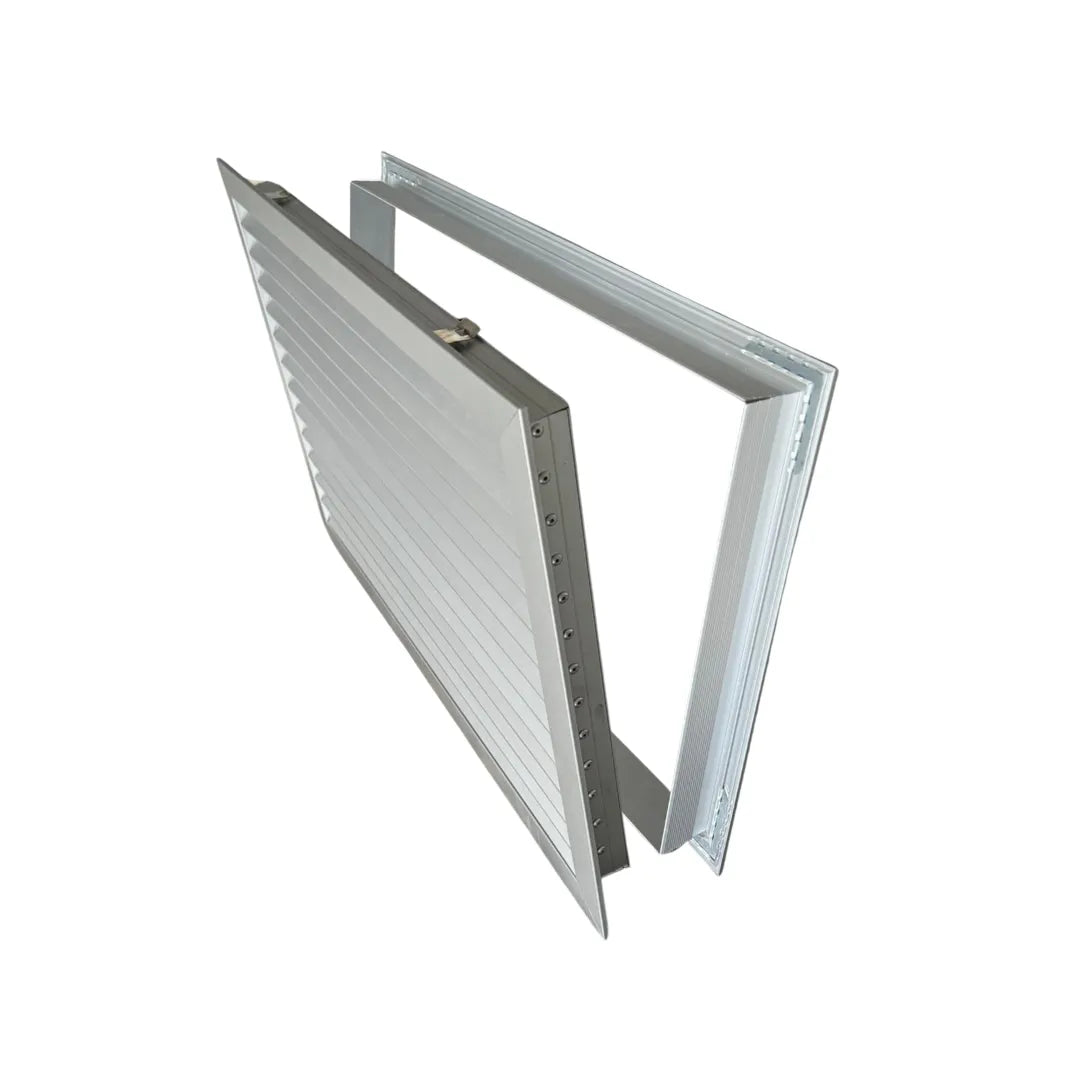

1. Place a grille frame into the door opening from the front, pushing it in fully so it is flush with the door
2. Place the other grille frame into the door opening from the rear of the door
3. For doors of thicknesses from 1.25" to 2-1/8", see below - for thicker doors, skip to Step 4

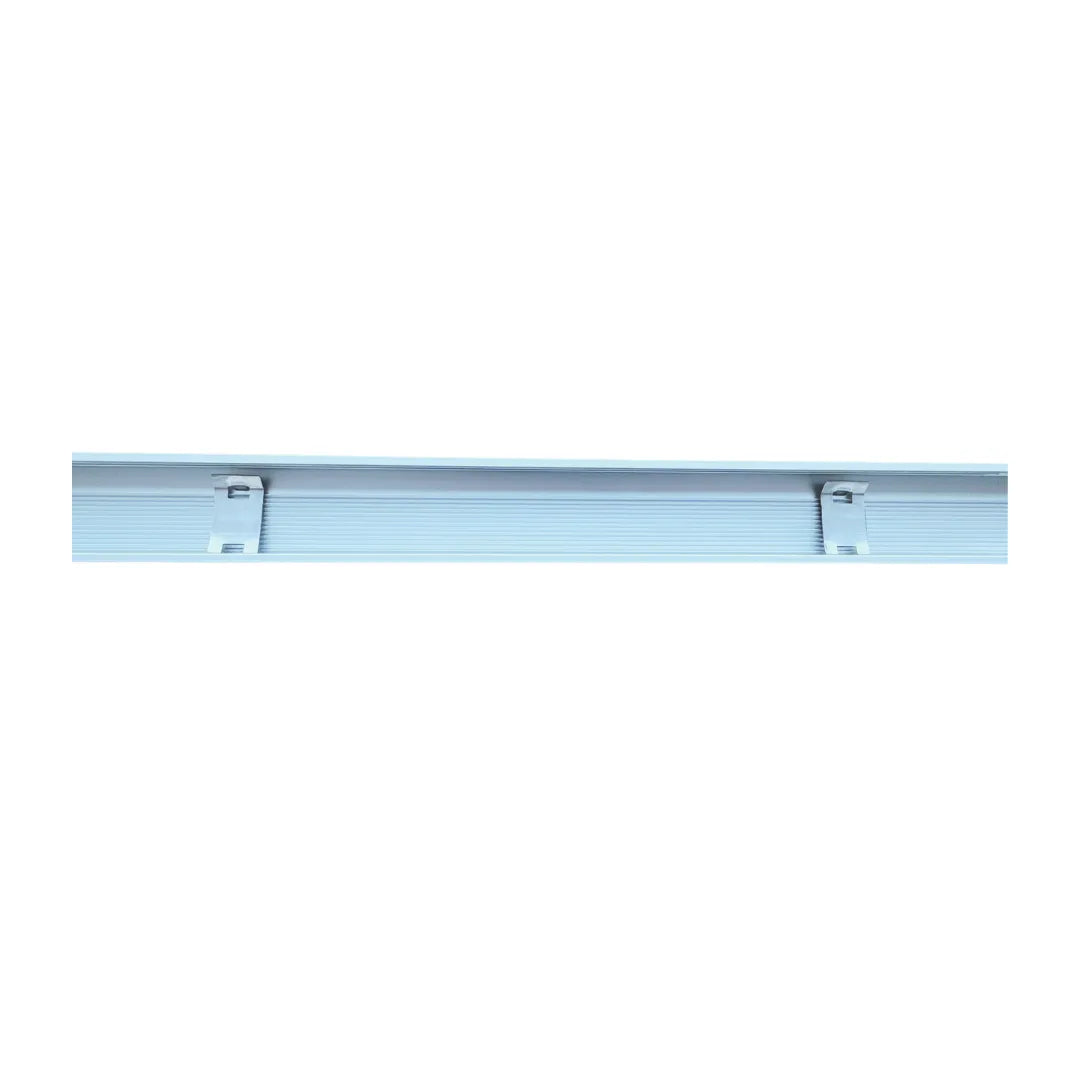

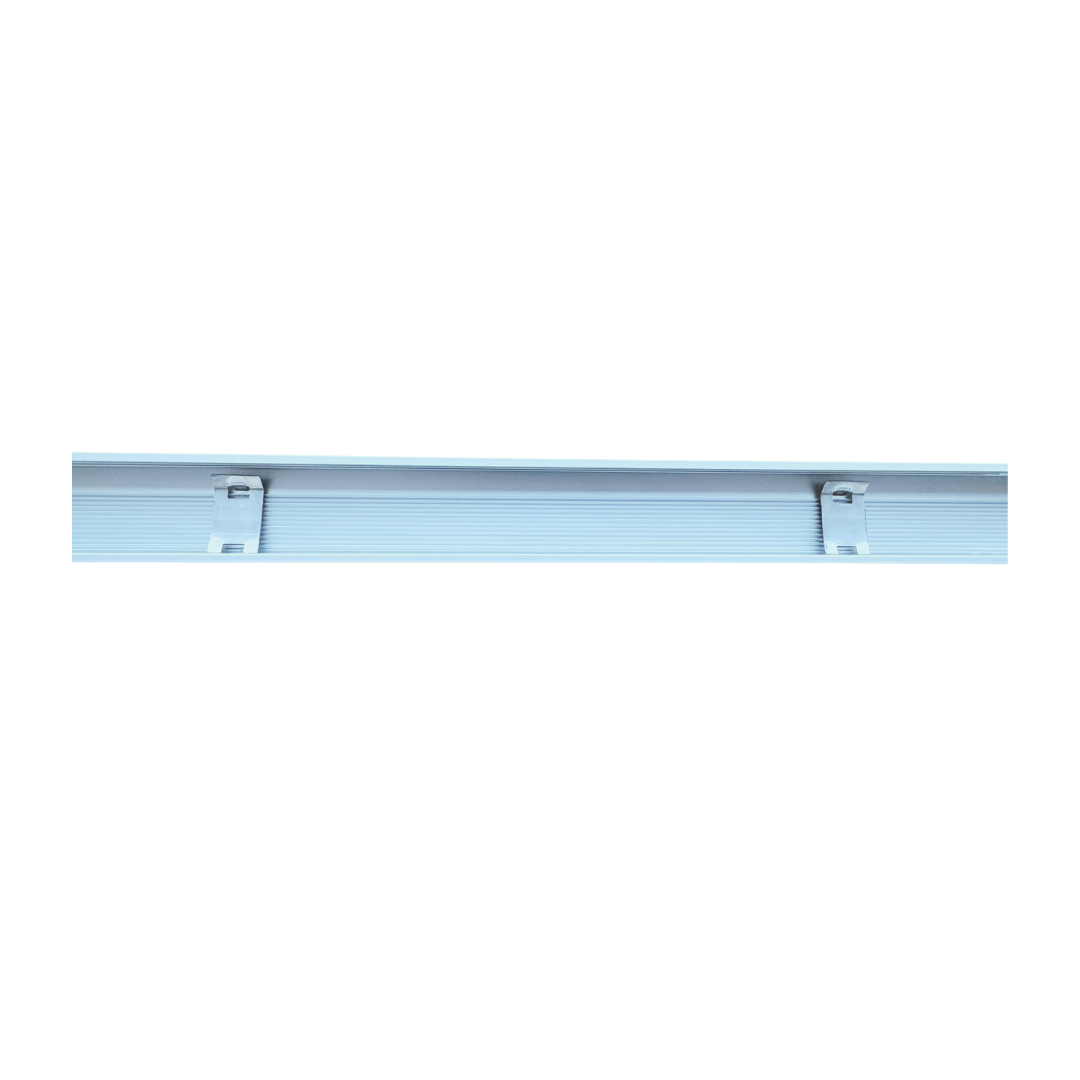

   1. Note: The ridged flange in the frame, together with the locking clips, lock the front and rear frames together through a series of increments for different door thicknesses in the above range
   2. Holding the front grille frame in place, gently push the rear grille frame in until the locking clips audibly snap into place, securing the front and rear frames together
   3. Continue gently pushing the rear grille frame in as required until flush with the door
4. Once both front and rear grille frames are flush with the door, self tapping screws (not included) can be used to drill directly into the frames, and fix them to the door

Bulk Pricing

• 1-4 panels: retail price
• 5-49 panels: 10% off retail
• 50-99 panels: 15% off retail
• 100+ panels: 20% off retail

Downloads

• Specification Sheet
• Technical Drawing
