Byson Fixed Louver Grilles 1in, Aluminum with Insect Screen - White

• Applications:
  • Perfect for exterior exhaust applications prioritizing high air flow rate, with its narrow and shallow angled louvers
  • Great for interior use as air return, with an aesthetically pleasing white finish
• Pest proof - Galvanized steel bird mesh protects from insects and rodents
• Material is strong and rigid aluminum, preventing vibration noise
• White powder coated finish provides excellent rust and corrosion protection
• Well Packed - Comes shrink wrapped and snug in its own box therefore preventing damage

Installation

Self tapping screws (not included) can be used to drill directly into the grille face or neck, depending on preference, and fix it to the surface (wall or wooden frame) as required.

Sizing

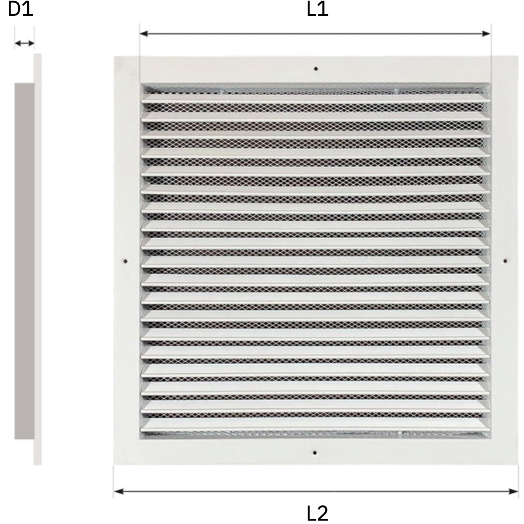

• Neck size: Cited in listing title. Size of the opening that would be cut into the wall/ceiling to install the grille. Depicted via L1 in schematic
• Overall size: Total size of grille as visible once installed. Depicted via L2
• Neck Depth: Depth of grille neck (excluding thickness of front face). Depicted via D1

Product number	Neck size L1 (in)	Neck size L1 (mm)	Overall size L2 (mm)	Neck depth D1 (mm)
BYFGAAI-0808	8X8	200X200	260X260	25
BYFGAAI-1212	12X12	300X300	360X360	25
BYFGAAI-1616	16X16	400X400	460X460	25
BYFGAAI-1818	18x18	450X450	510X510	25
BYFGAAI-2020	20X20	500X500	560x560	25
BYFGAAI-2424	24X24	600X600	660x660	25



Bulk Pricing

• 1-4 grilles: retail price
• 5-49 grilles: 10% off retail
• 50-99 grilles: 15% off retail
• 100+ grilles: 20% off retail

Downloads

• Specification Sheet
