Byson Wall L Bracket - 550mm (~22") Arm
Byson Wall L Bracket - 550mm (~22") Arm
Available in stock (24)
Professional support solution for equipment such as Split Air Conditioner Condensing Units.
Product Description

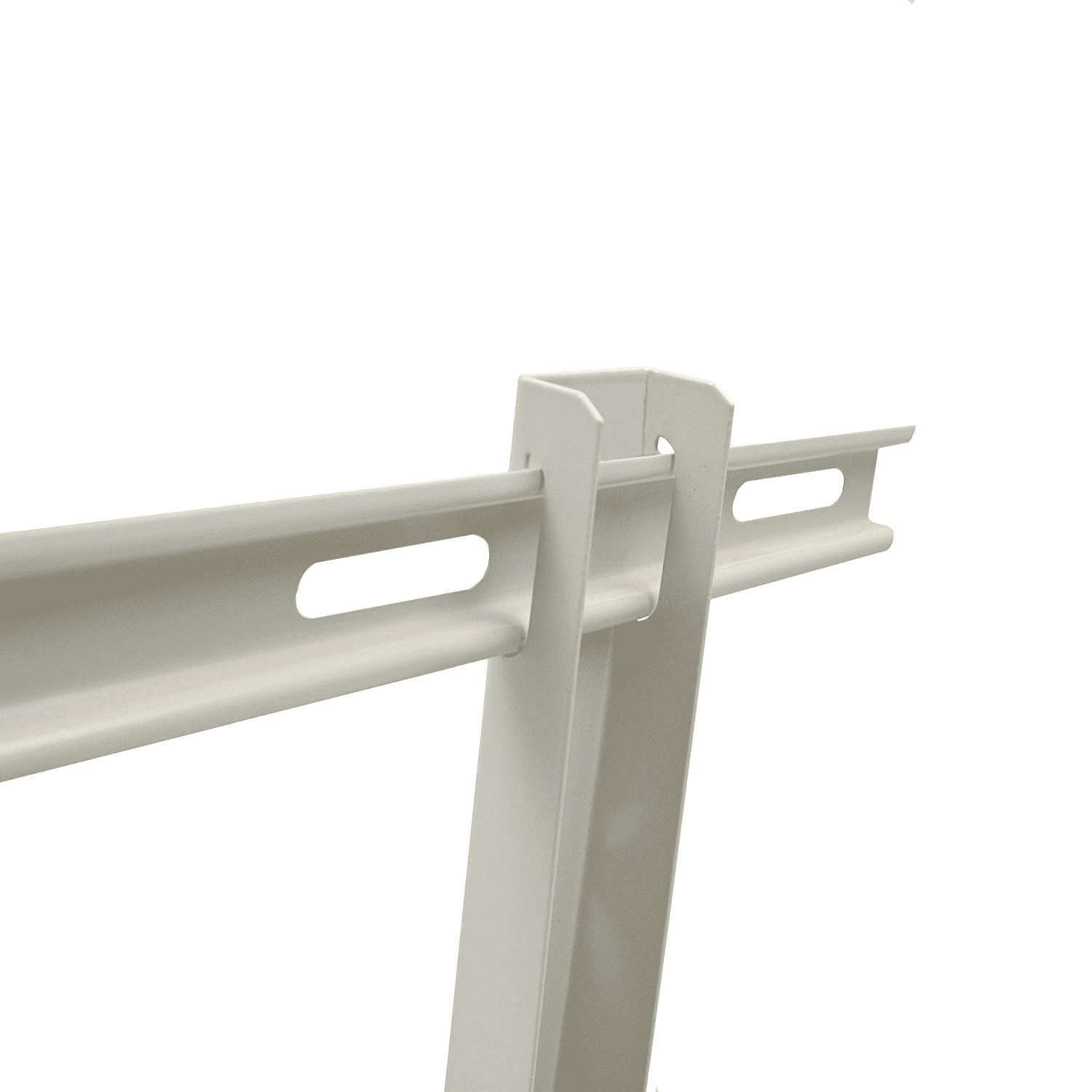

The unique, interlocking mechanism of this Type 3 condensing unit bracket enables the arms to be joined to the uprights in a matter of seconds.
A spring-lock automatically secures the joint, preventing the arms being dislodged accidentally.
For improved corrosion resistance, the entire assembly is 100% zinc plated, followed by a hard ED coating, before being finished with an external grade polyester powder coating in RAL 7032.
Features
- Quick assembly saves installation time and cost

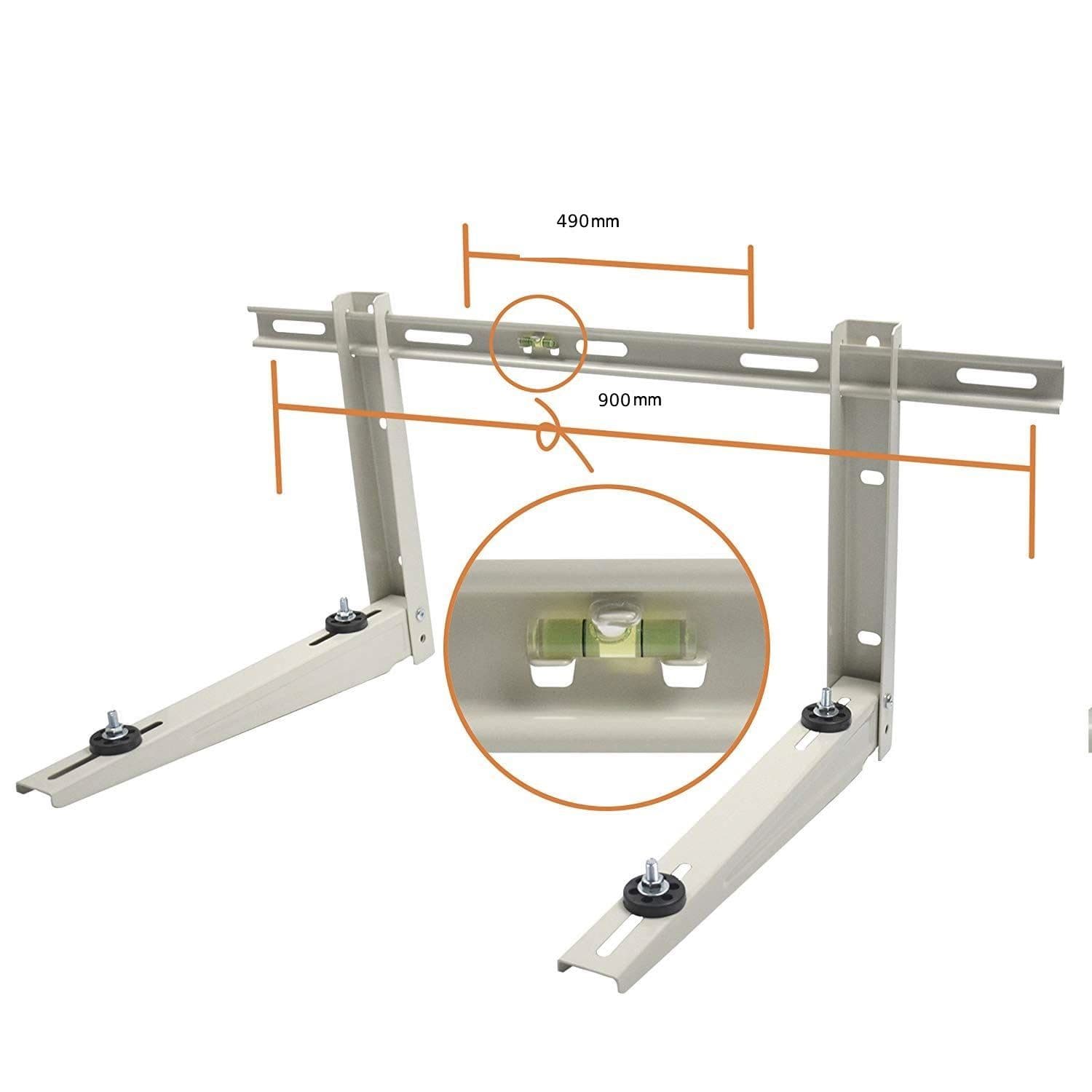

- Integral spirit-level makes correct installation of the crossbar easier
- Uprights mount anywhere on the crossbar enabling arm span to be adjusted easily

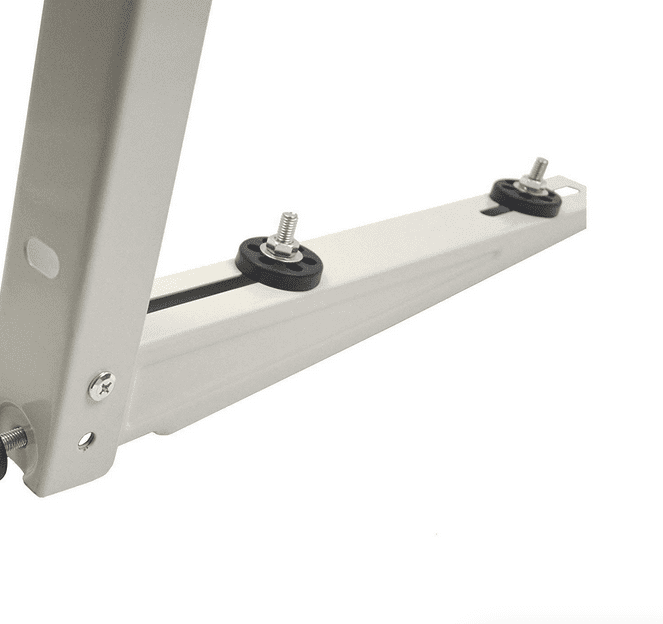

- Wall spacers can be adjusted to level the arms independently
Specifications
- Textured finish in RAL 7032
- Safe Working Load : 120 KG
- Maximum Load : 200 KG
- Cross Bar : 900mm

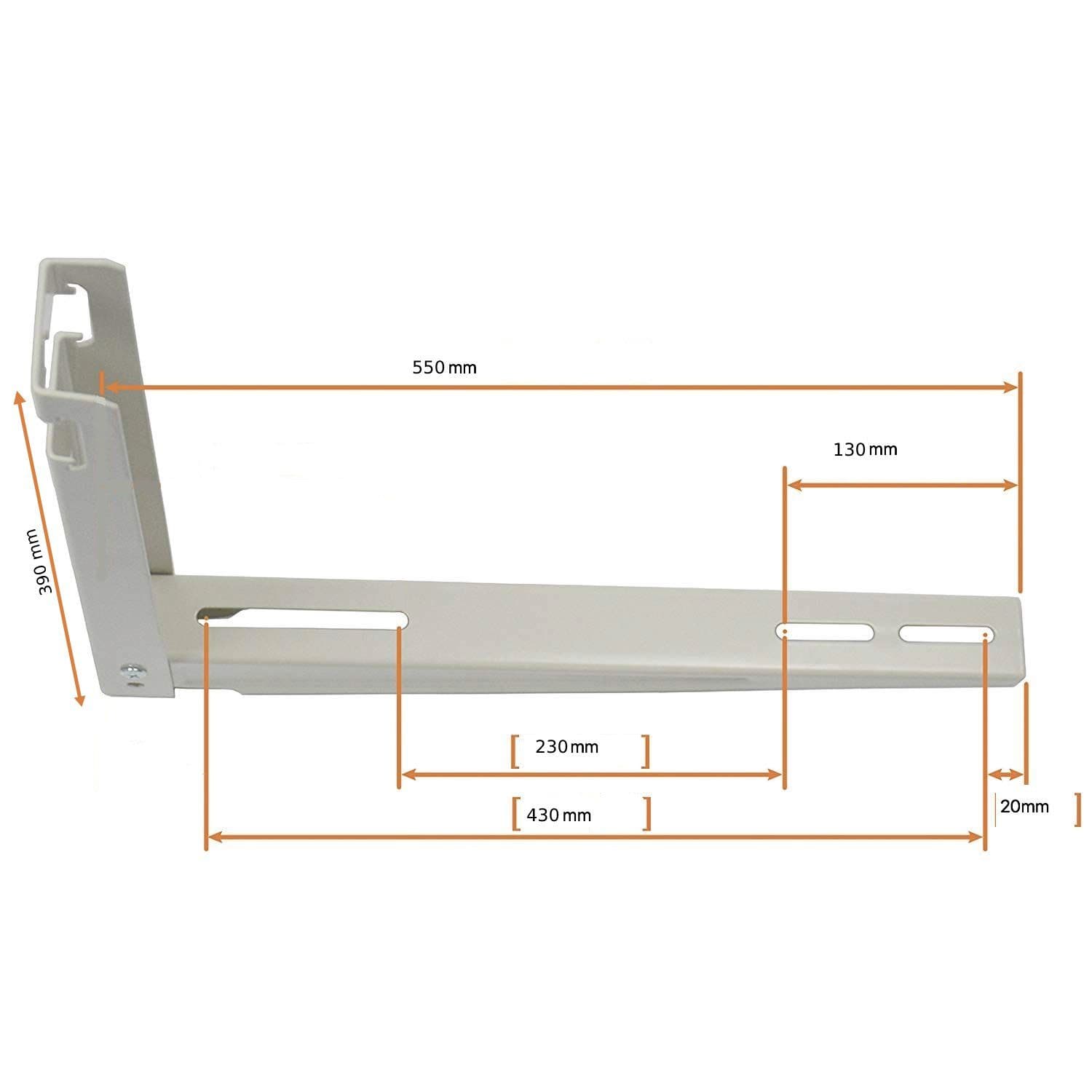

- Arm length : 550mm
- Upright : 430mm
- Weight: 5 KG
-
