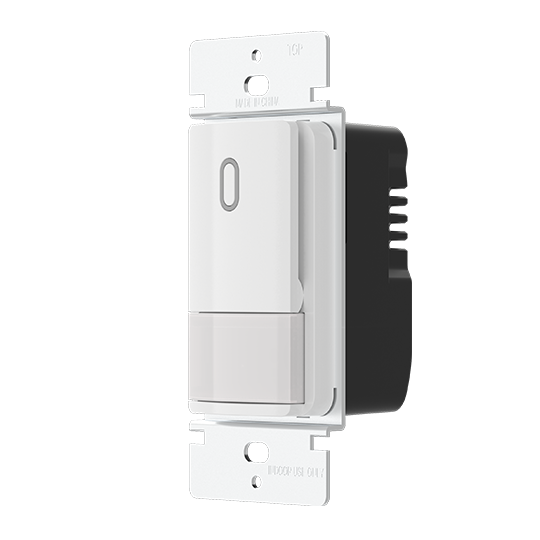

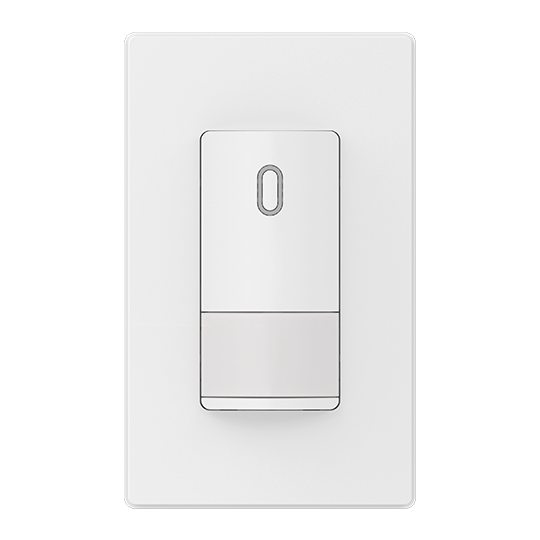

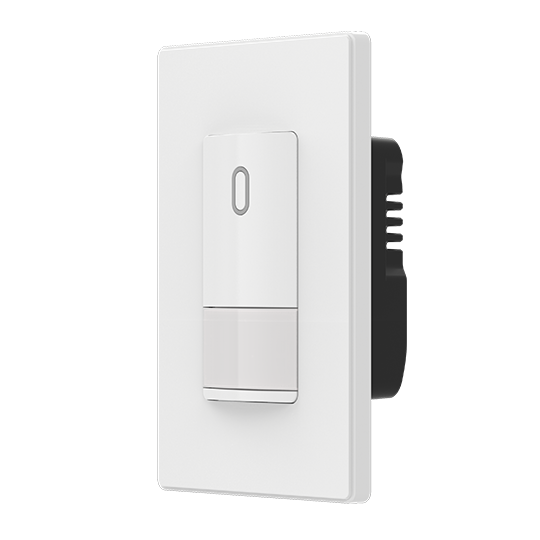

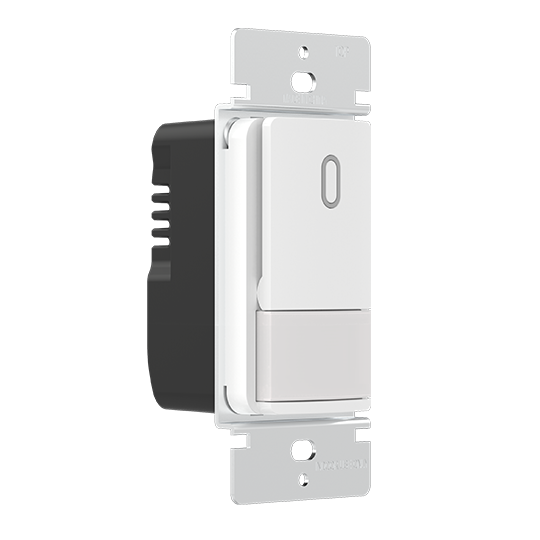

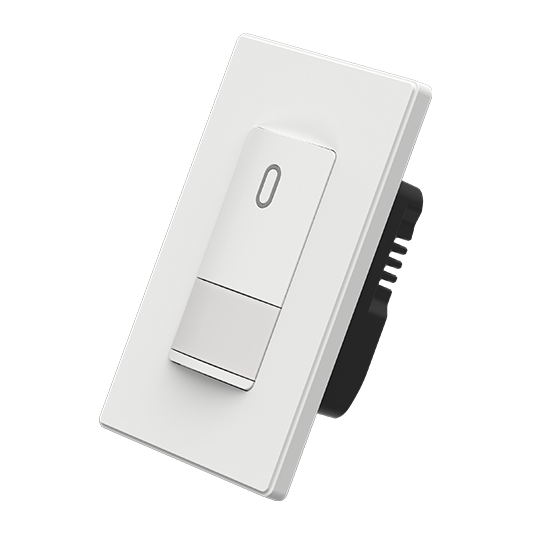

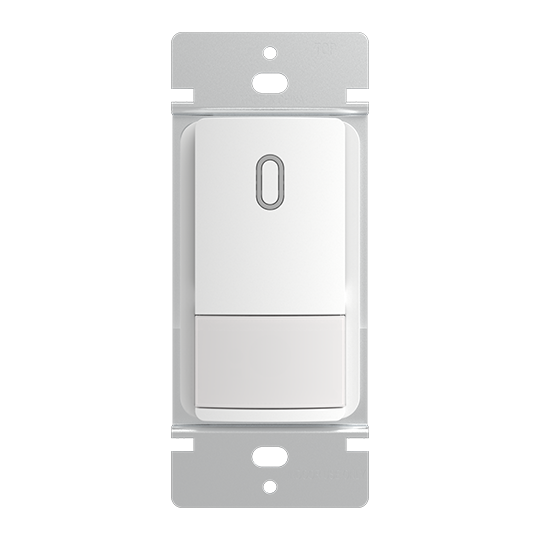

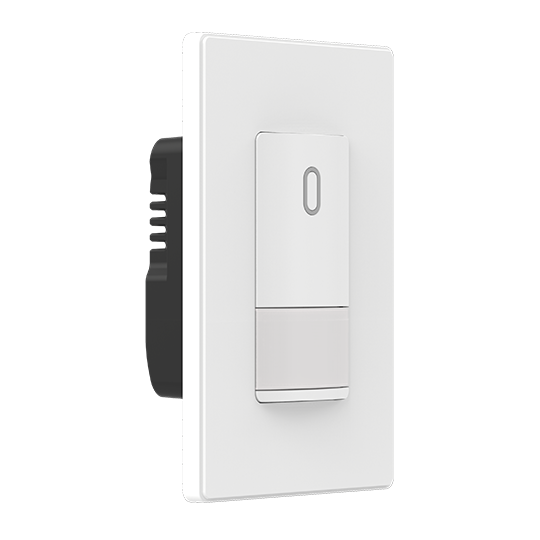

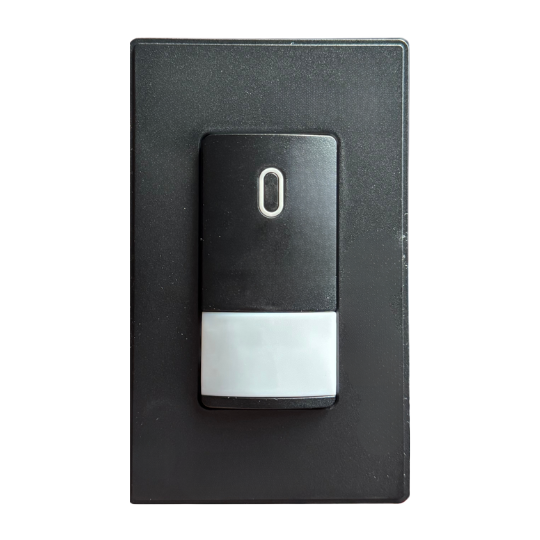

BysonX Automotion – Elegant Motion Sensor Light Switch with Timer (120V, PIR, Neutral Required)

Product Description

Where engineering meets elegance — the BysonX Automotion Motion Sensor Switch brings effortless convenience and refined design to modern spaces. With a clean, screwless faceplate and subtle profile, it blends beautifully into walls while delivering reliable, hands-free control.

Automotion intelligently manages lighting and ventilation using PIR motion detection and an integrated ambient light sensor, ensuring lights only activate when needed. Its customizable timer adds comfort and energy efficiency, while certifications guarantee safe, lasting performance.

Purposeful, refined, and built to perform — and certified to cETLus standards for safety and reliability — BysonX Automotion is automation made beautiful.

Key Features

• Hands-Free Convenience – Lights and fans switch ON with motion, OFF when the room is clear.

• Customizable Timer Control – Adjustable delay from 15 seconds to 30 minutes.

• Energy-Saving Light Sensor – Prevents unnecessary activation during daylight.

• Wide Coverage – 180° detection range, up to 600 sq. ft.

• Elegant Design – Minimalist, screwless faceplate for a refined modern look.

• Certified Safe – Built to meet cETLus, FCC, and California Title 20 standards.

Technical Specifications

• Voltage: 120 VAC, 60 Hz

• Load Ratings: 500 W Incandescent; 150 W LED/CFL; 1/6 HP Fan

• Timer Range: 15 seconds – 30 minutes

• Detection Angle: 180°

• Coverage Area: Up to 600 sq. ft.

• Adjustability: Light level and sensitivity controls

• Operating Temperature: 0 °C to 40 °C

• Wiring: Single pole only; neutral wire required

• Certifications: cETLus, FCC, California Title 20

What’s In the Box

• BysonX Automotion Switch

• Matching Screwless Wall Plate

• Mounting Screws

• Wire Connectors

• Quick Install Guide
