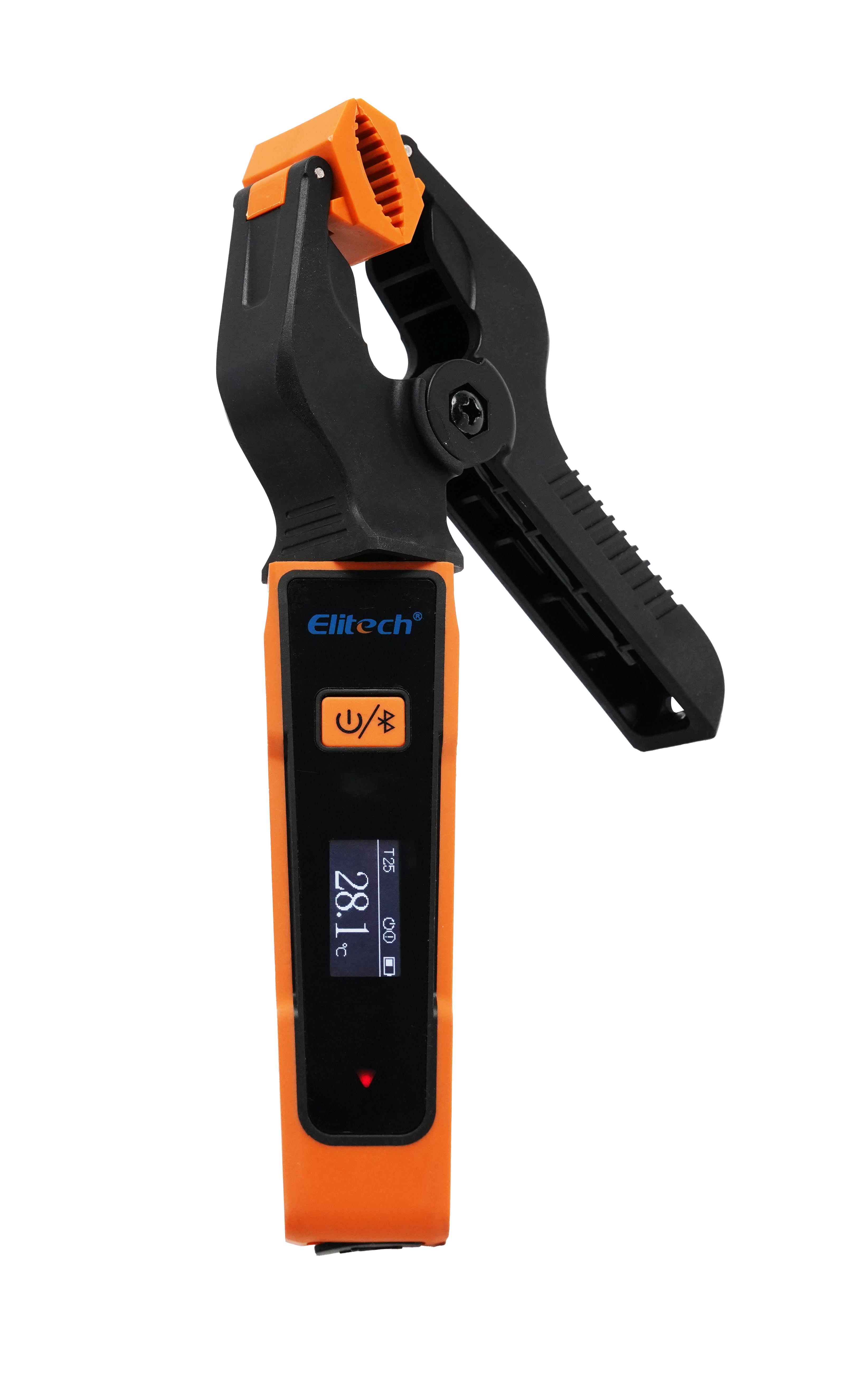

Elitech IPT-01S Wireless Temperature Clamp
Elitech IPT-01S Wireless Temperature Clamp
Out of stock
Elitech is one of the world's most innovative makers of HVAC-R and cold chain monitoring and control hardware, trusted by the World Health Organization, the United Nations, Sanofi, Haier, Bosch, Grainger, Schneider Electric, Panasonic, and more.
Description

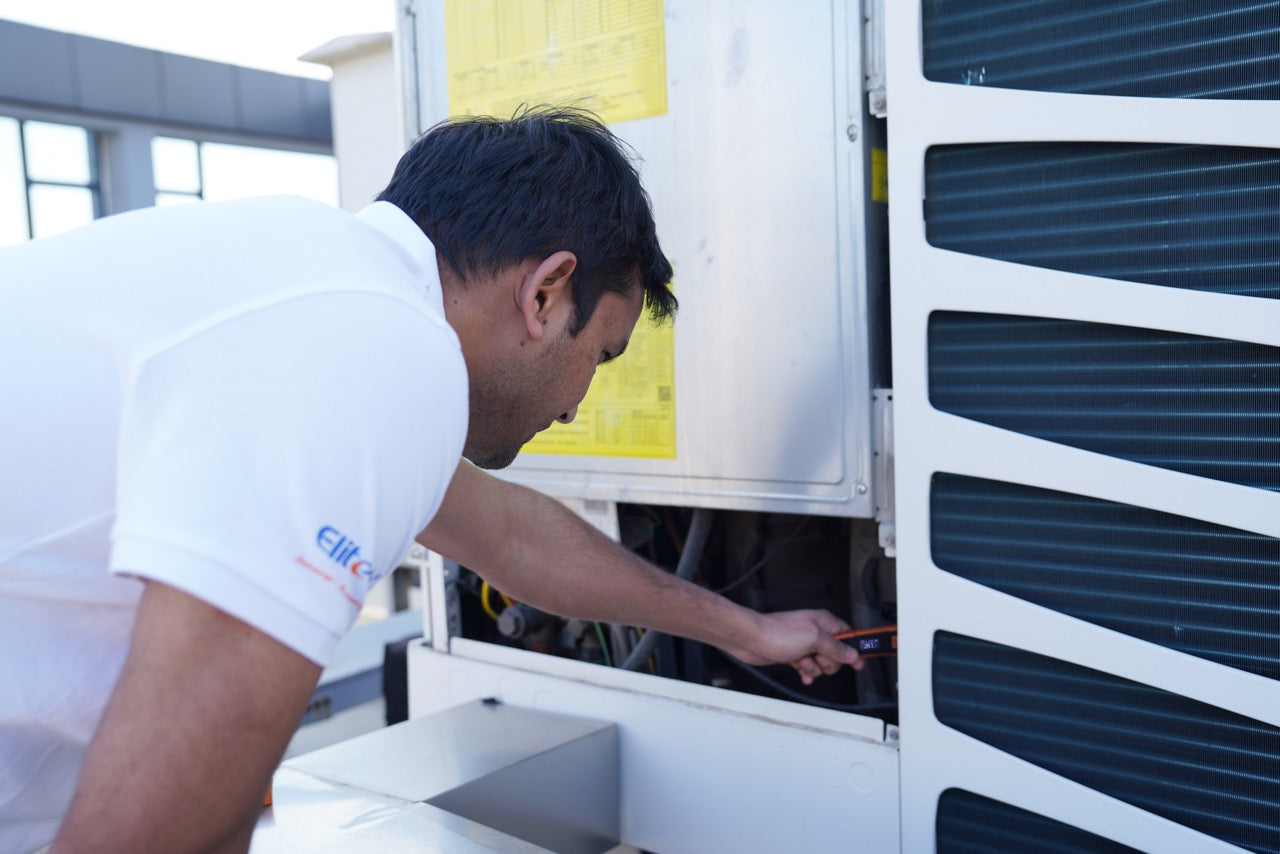

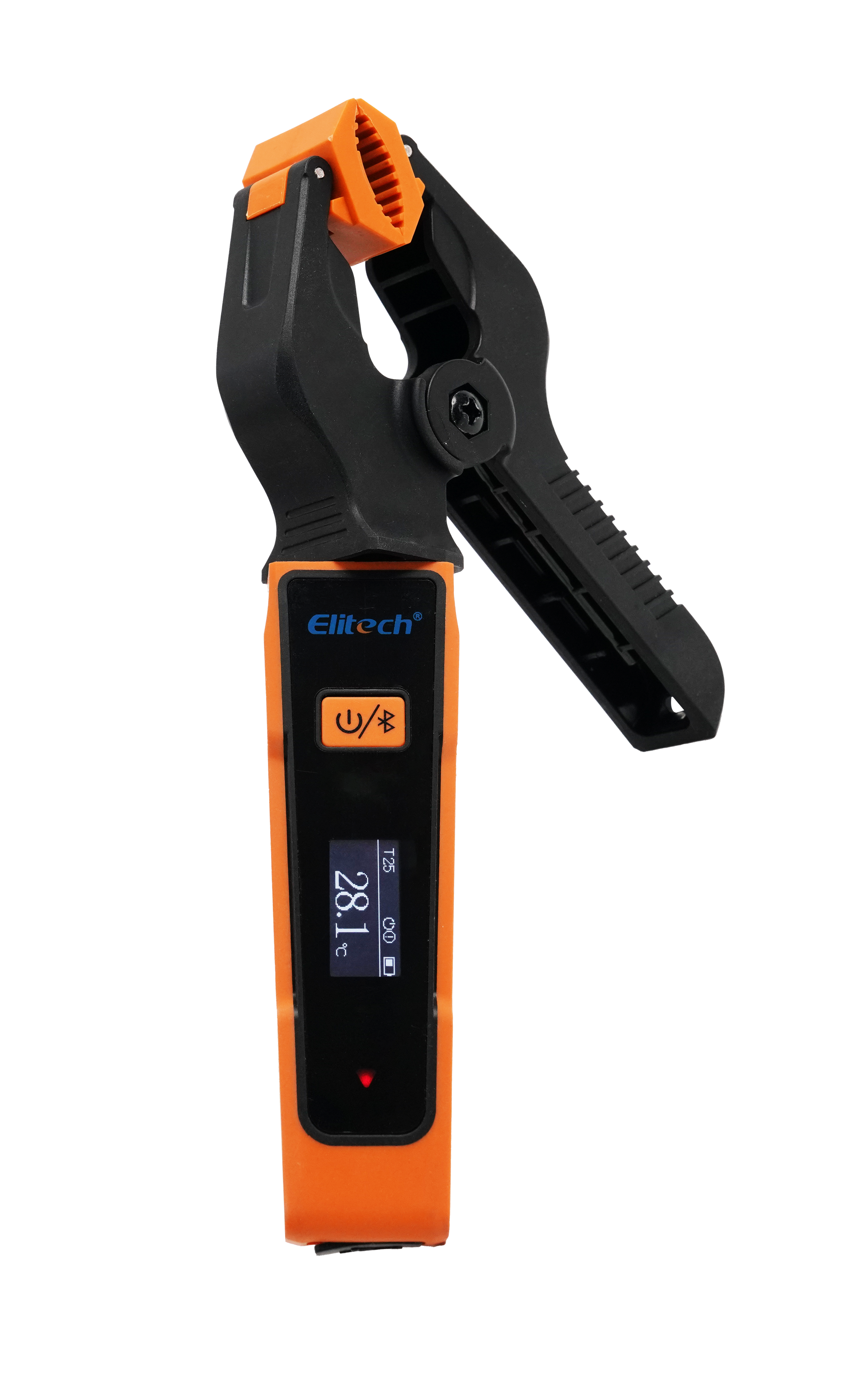

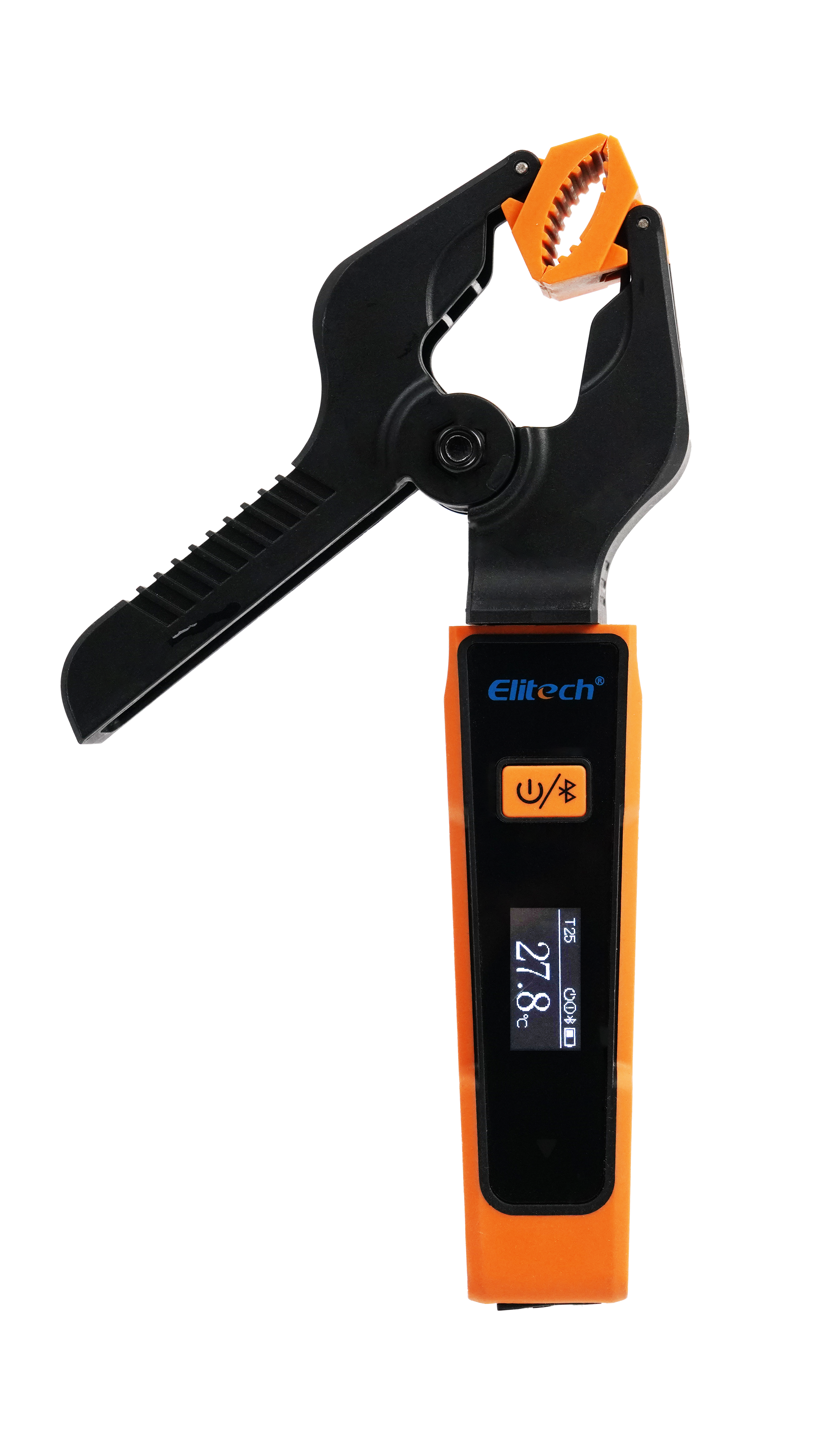

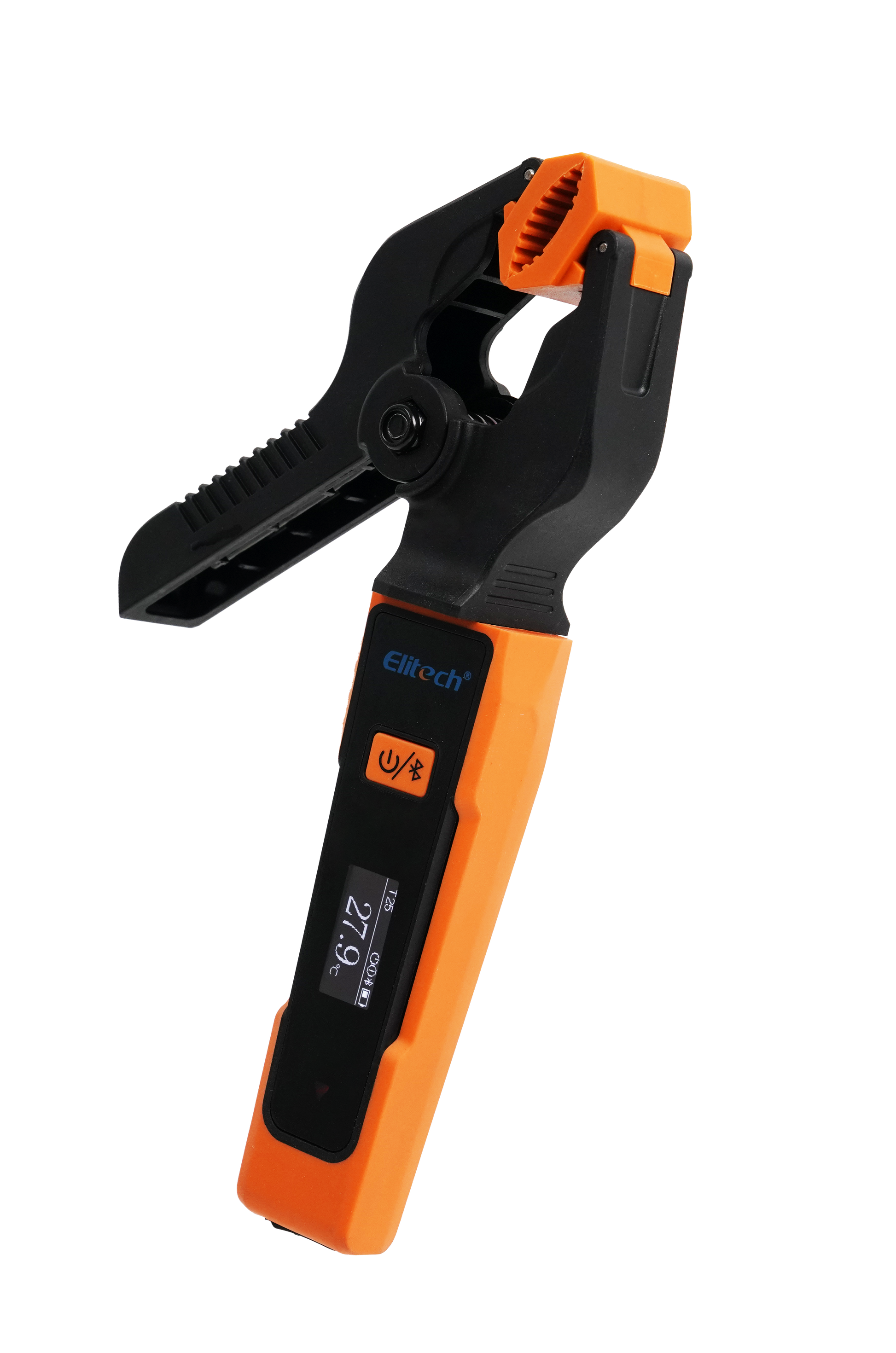

The IPT-01S series wireless temperature probe is specifically designed for routine diagnostics and maintenance of HVAC systems. Equipped with a high-precision thermocouple sensor, it quickly measures the surface temperature of pipes. It provides users with accurate, real-time temperature data to improve on-site work efficiency.

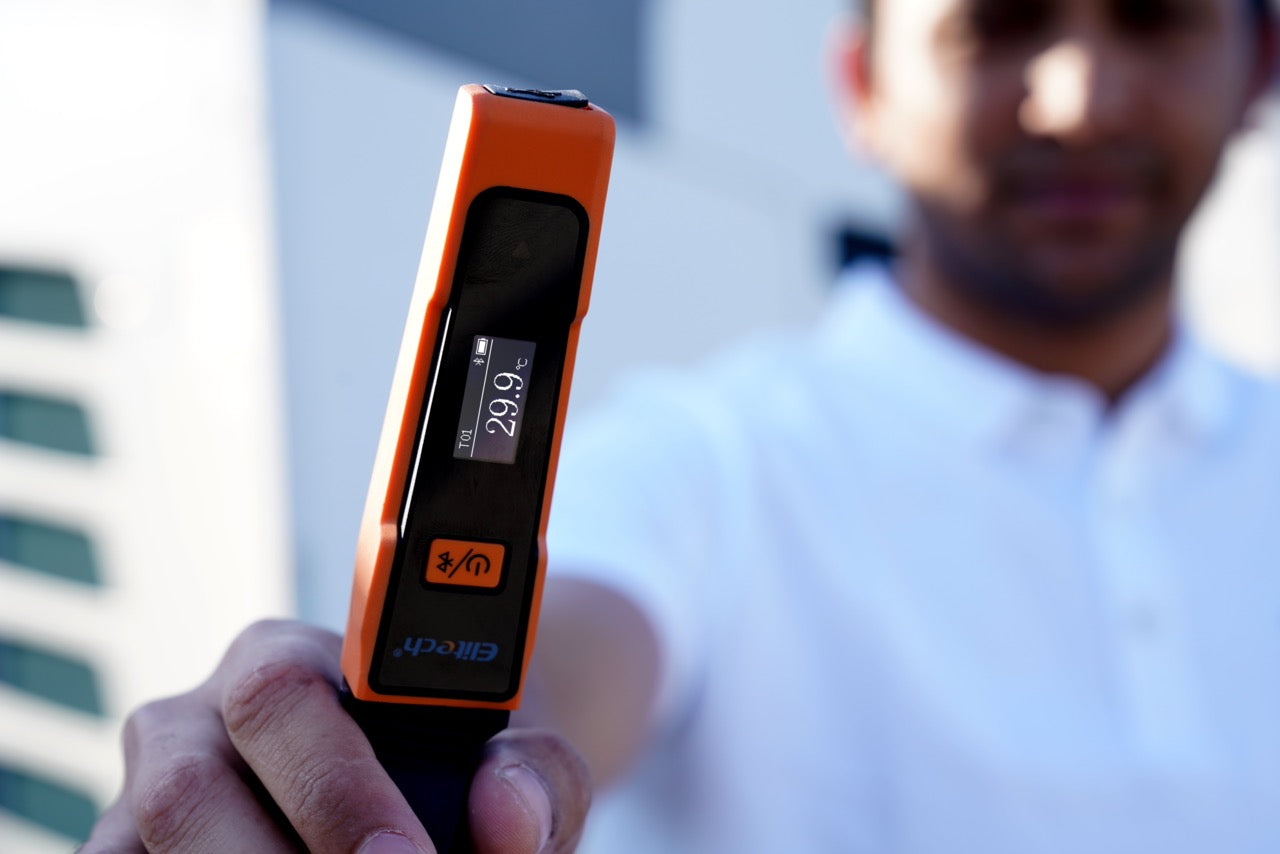

Its 180° rotatable, high-brightness OLED display screen allows data to be viewed from multiple angles, making monitoring more intuitive and convenient. The device features an extended 100 meter Bluetooth connection, enabling remote monitoring and real-time data viewing via an app. It can also integrate with the Elitech MS series manifold gauges for enhanced multi-device operational efficiency.
Additionally, the device supports data recording, enabling users to view reports and analyze data through the app. With OTA (Over-The-Air) updates, the device remains up-to-date and optimized for long-term use.
Key Features

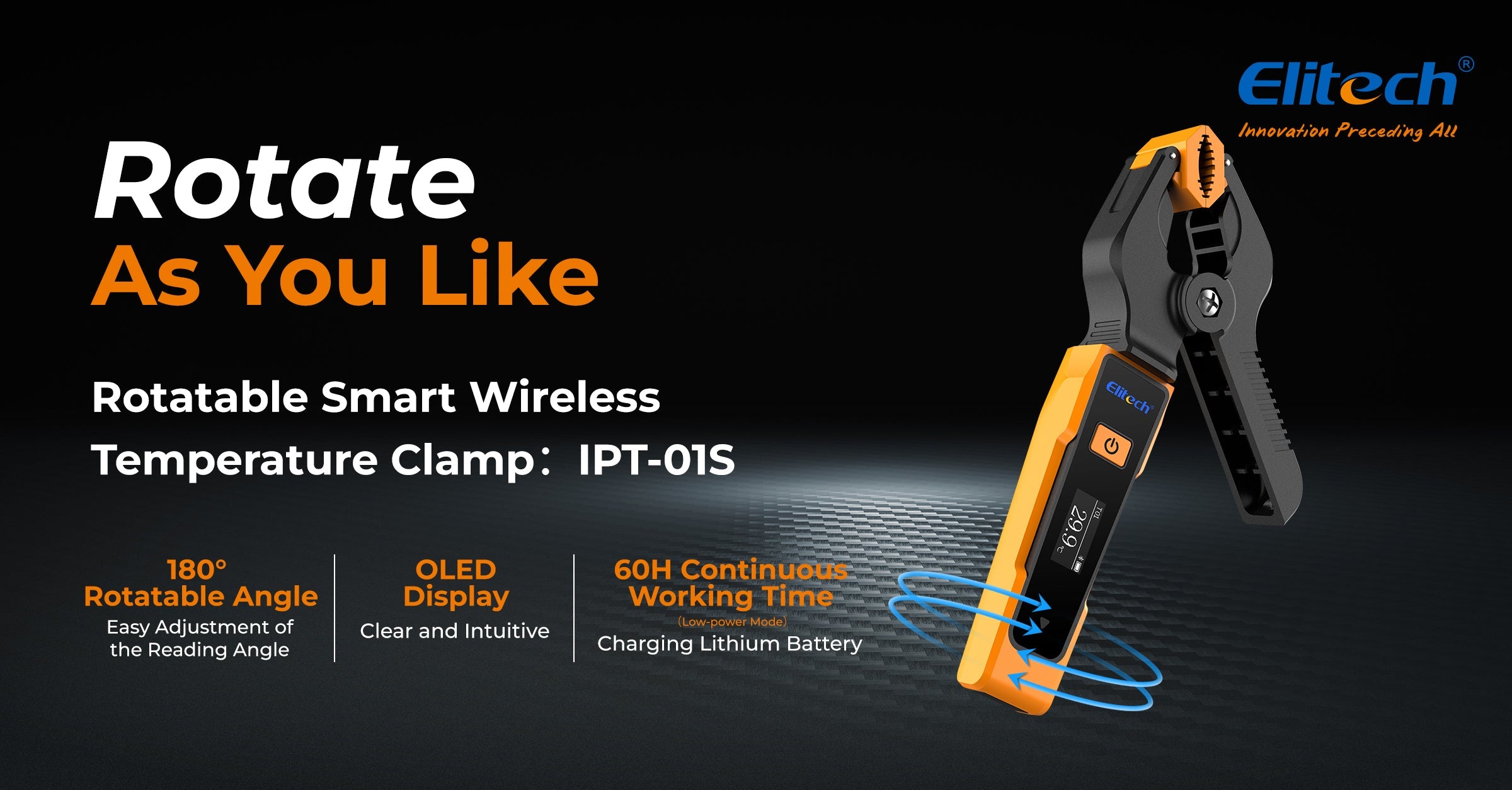

- 180° rotatable screen for easy adjustment of reading angle

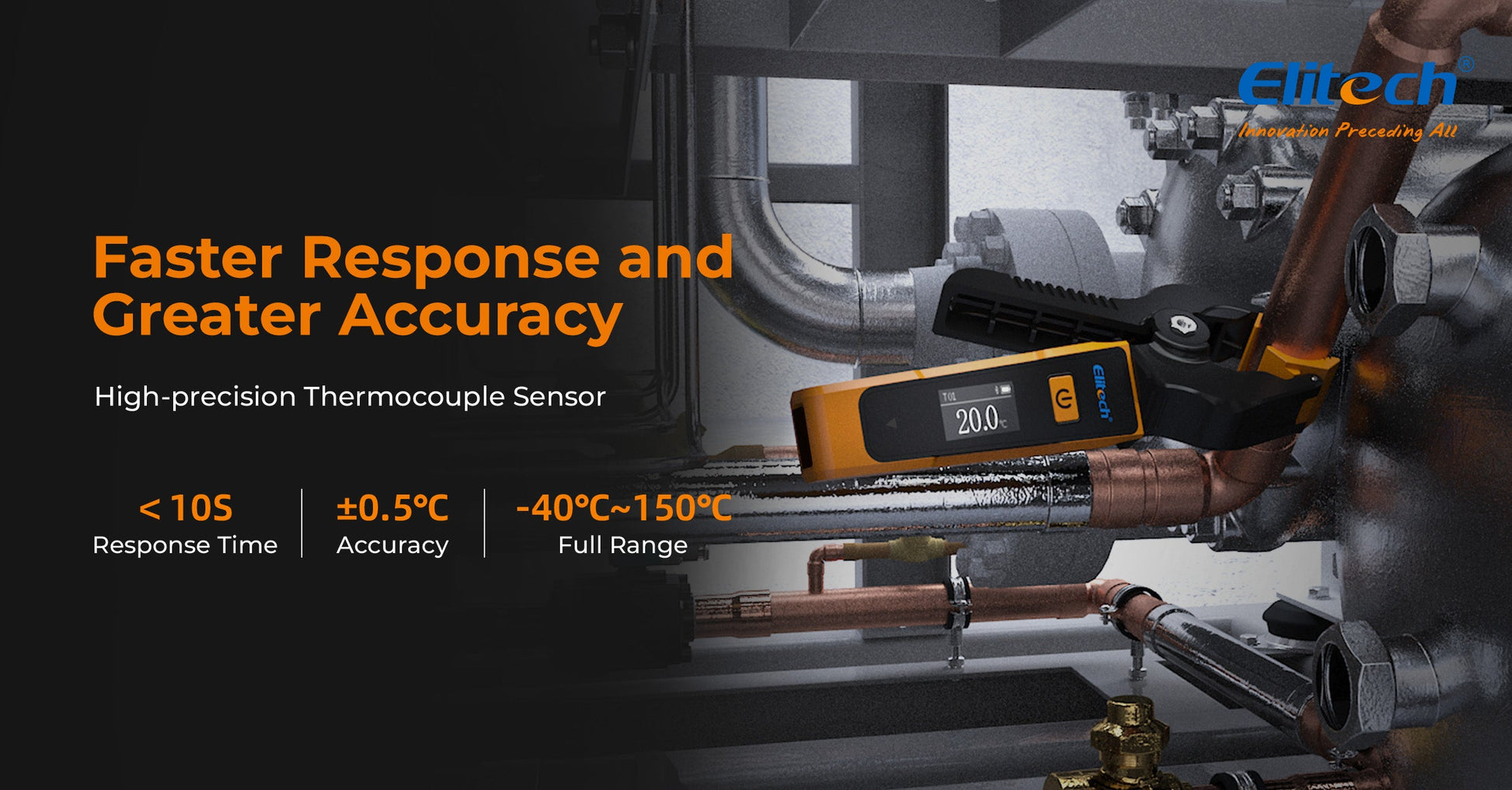

- High-precision thermocouple sensor for faster response and greater accuracy

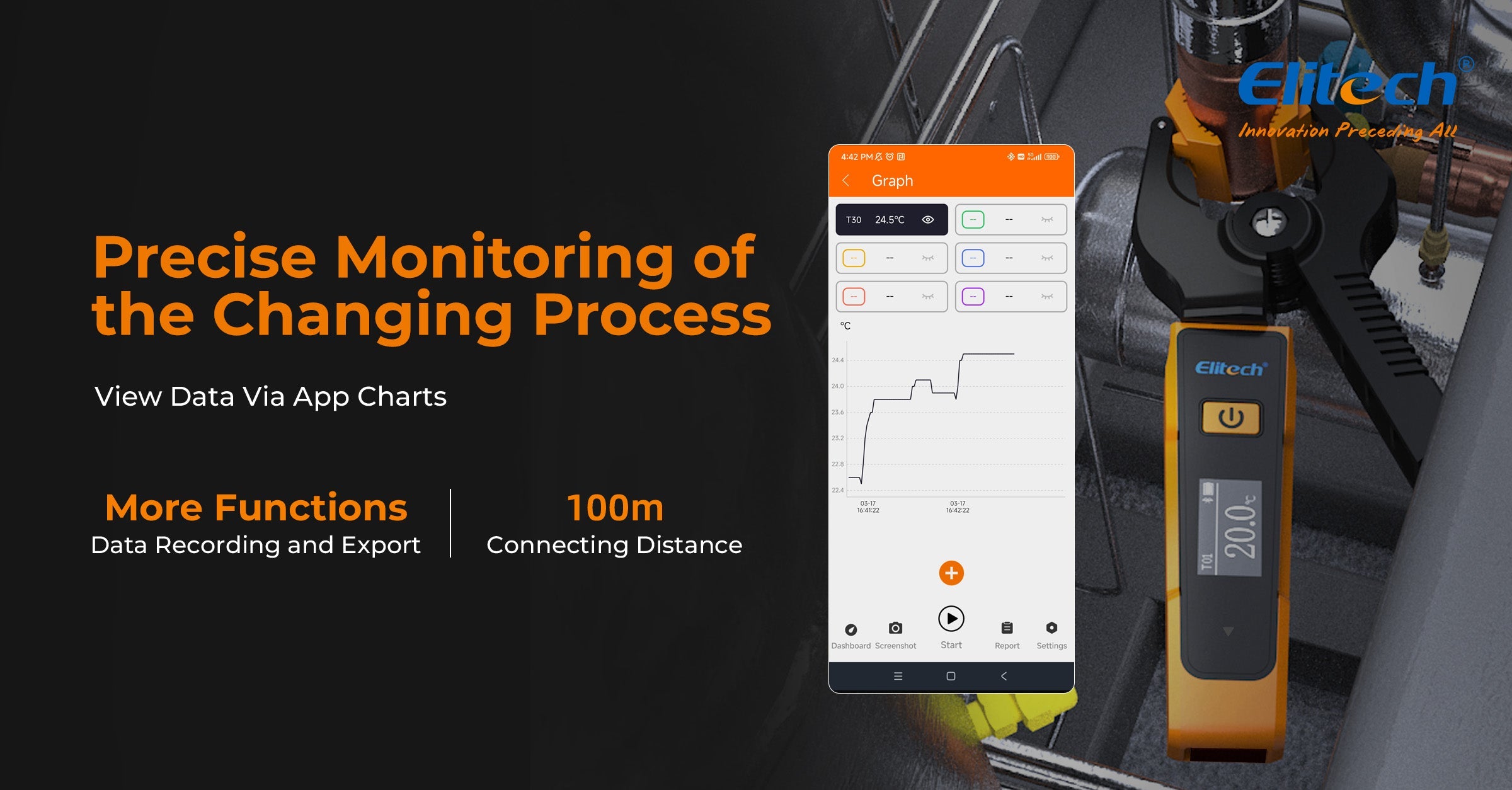

- View data via app charts for precise monitoring of the charging process
- Suitable for Elitech manifolds, more convenient for multiple scenarios

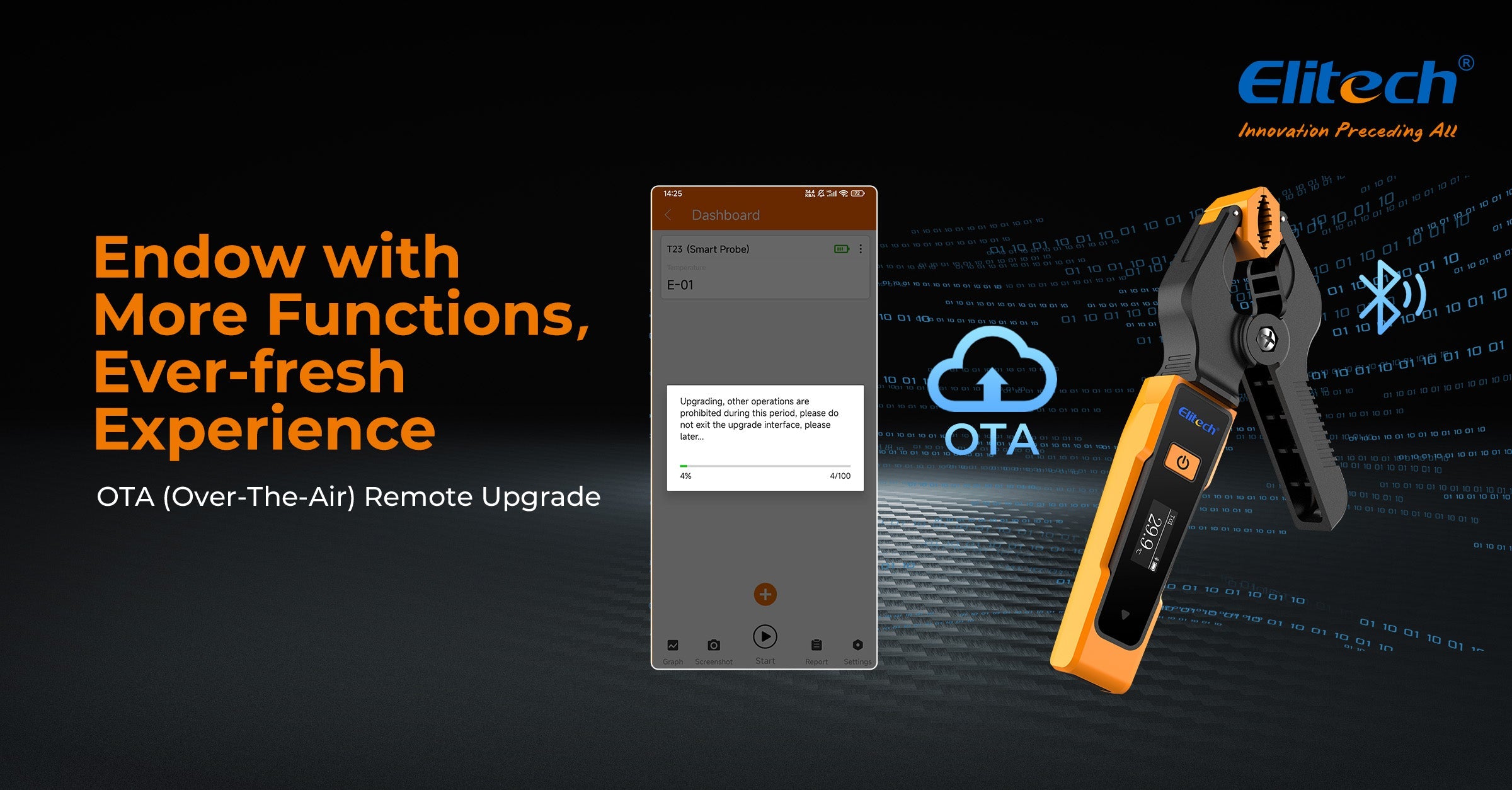

- OTA (Over-The-Air) remote upgrade, ever-fresh experience
Technical Specifications
| Measurement Range | -40°C - 150°C |
| Accuracy | ±0.5°C (-10°C - 100°C) |
| Resolution | 0.1°C |
| Units | °C, °F, °K |
| Sensor Type | Type-T Thermocouple Sensor |
| Bluetooth Transmission Distance | 100 meters (in unobstructed environment) |
| Offline Data Storage | 3,000 data points |
| Auto Power Off | OFF, 15 min (default), 30 min, 60 min |
| Display Screen | OLED screen |
| Screen Rotation Angle | 180° rotatable |
| Pipe Measurement Range | 6-38mm |
| Waterproof Rating | IP54 |
| Power Supply | 450mAh 3.7V rechargeable lithium battery. Battery Life: 60 hours (with dimmed display) |
| Environmental Requirements | Operating Temperature: -10 - 50°C / 14 - 122°F. Storage Temperature: -20 - 60°C / -4 - 140°F |
| Unit | Dimensions: 110 x 75 x 135mm. Weight: 120 grams |
