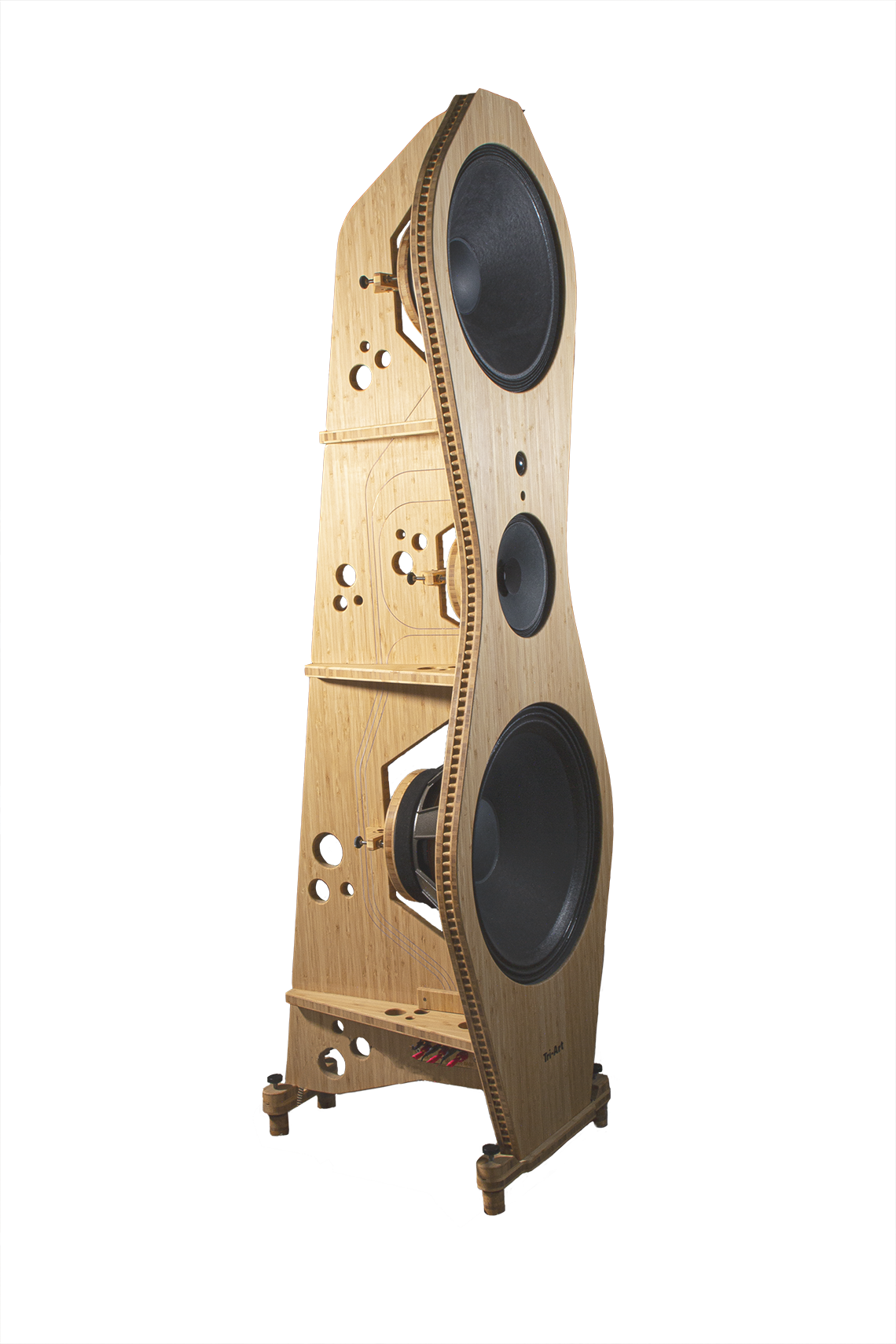

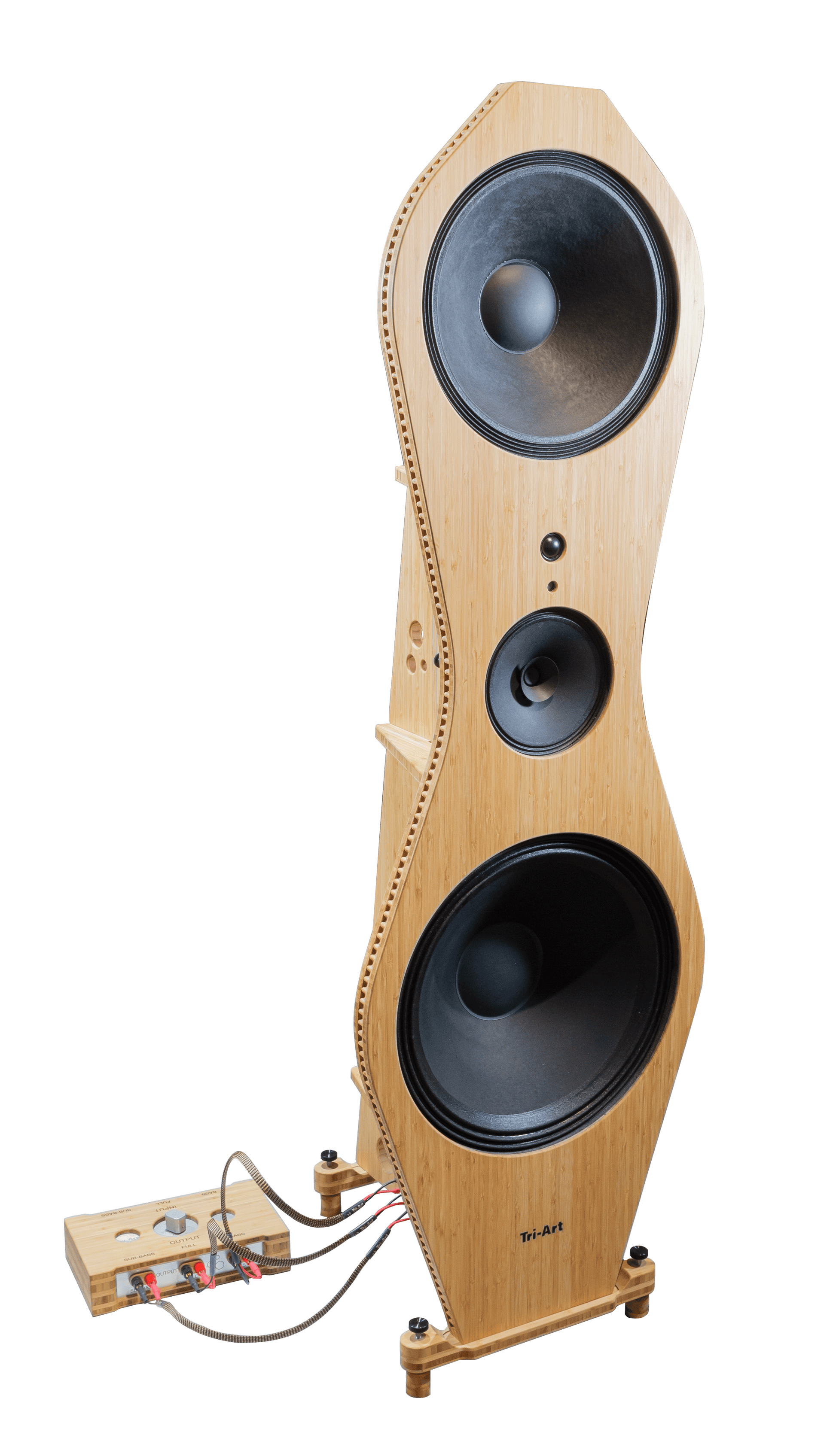

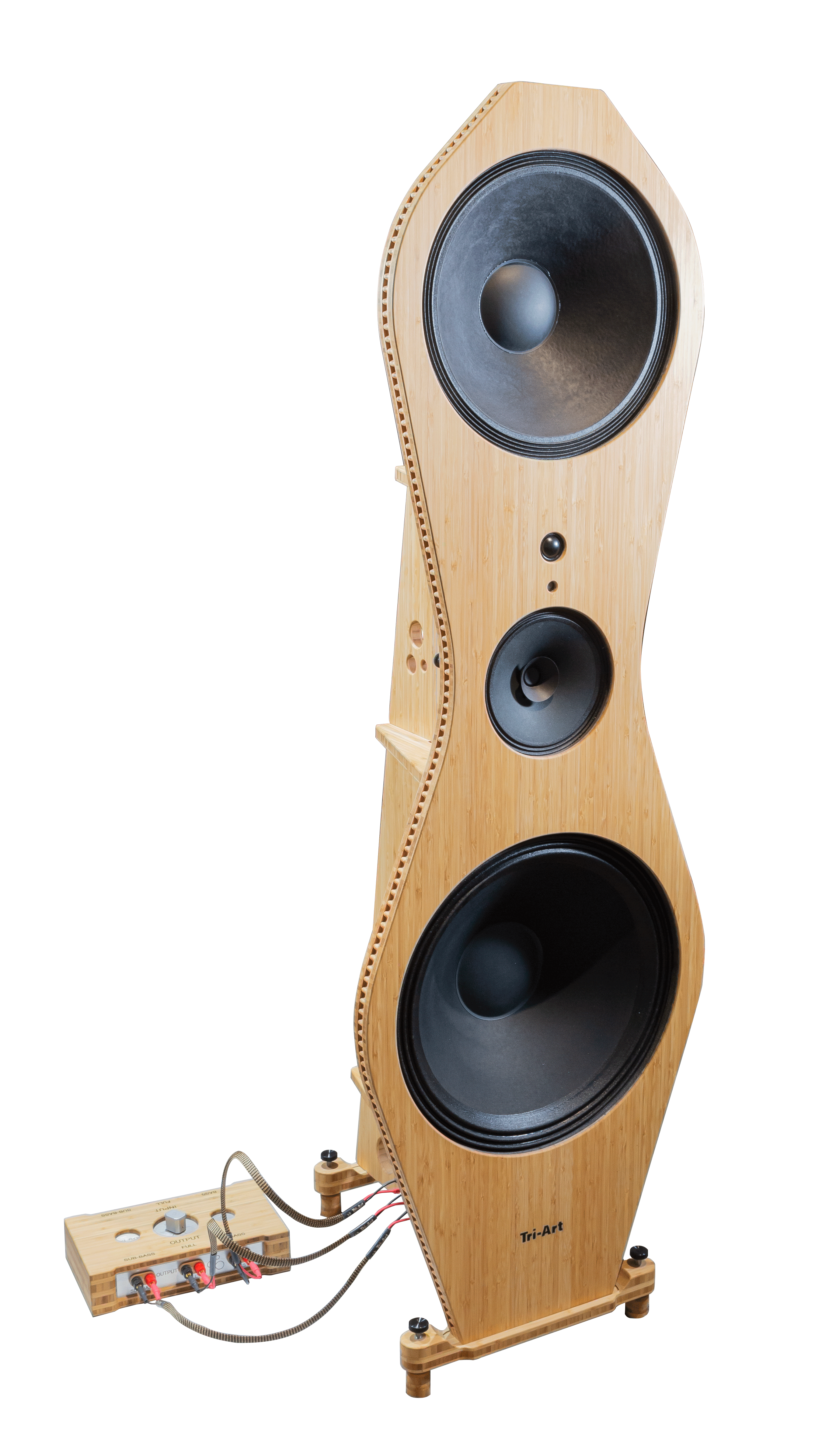

B-Series 5 Open Pair

Design: Open Baffle

Nominal Impedance: Single Input 8 ?

Recommended Amplifiers: 25 Up to 150 Watts RMS

Sensitivity: 92 dB SPL (1W/1M)

Volume Matching: Crossover Only

Frequency Range: 27 – 40,000 Hz (+/- 3dB)

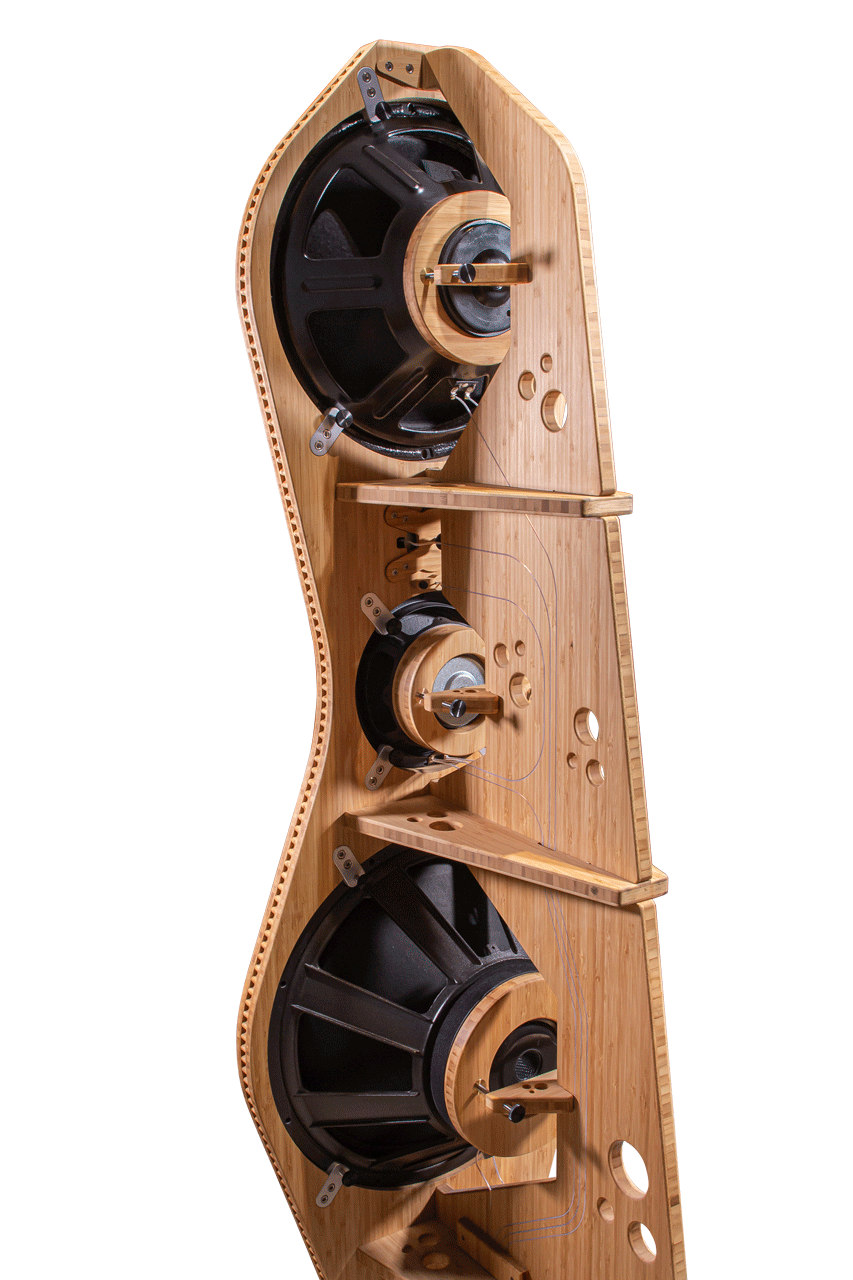

Driver Details

Total Drivers: Five

Input 1:

1" Fabric Dome Tweeter (13,000 Hz and up) 20 Watts

8" Full Range Paper Cone Cloth Edge

Super Tweeter (40,000 Hz)

Input 2:

Up to 150 Watts

Two 15" Paper Cone Cloth Edge Woofers

Top 15": 27-100Hz @ 1st Order 6dB Slope

Bottom 15": 27-50Hz @ 1st Order 6 dB Slope

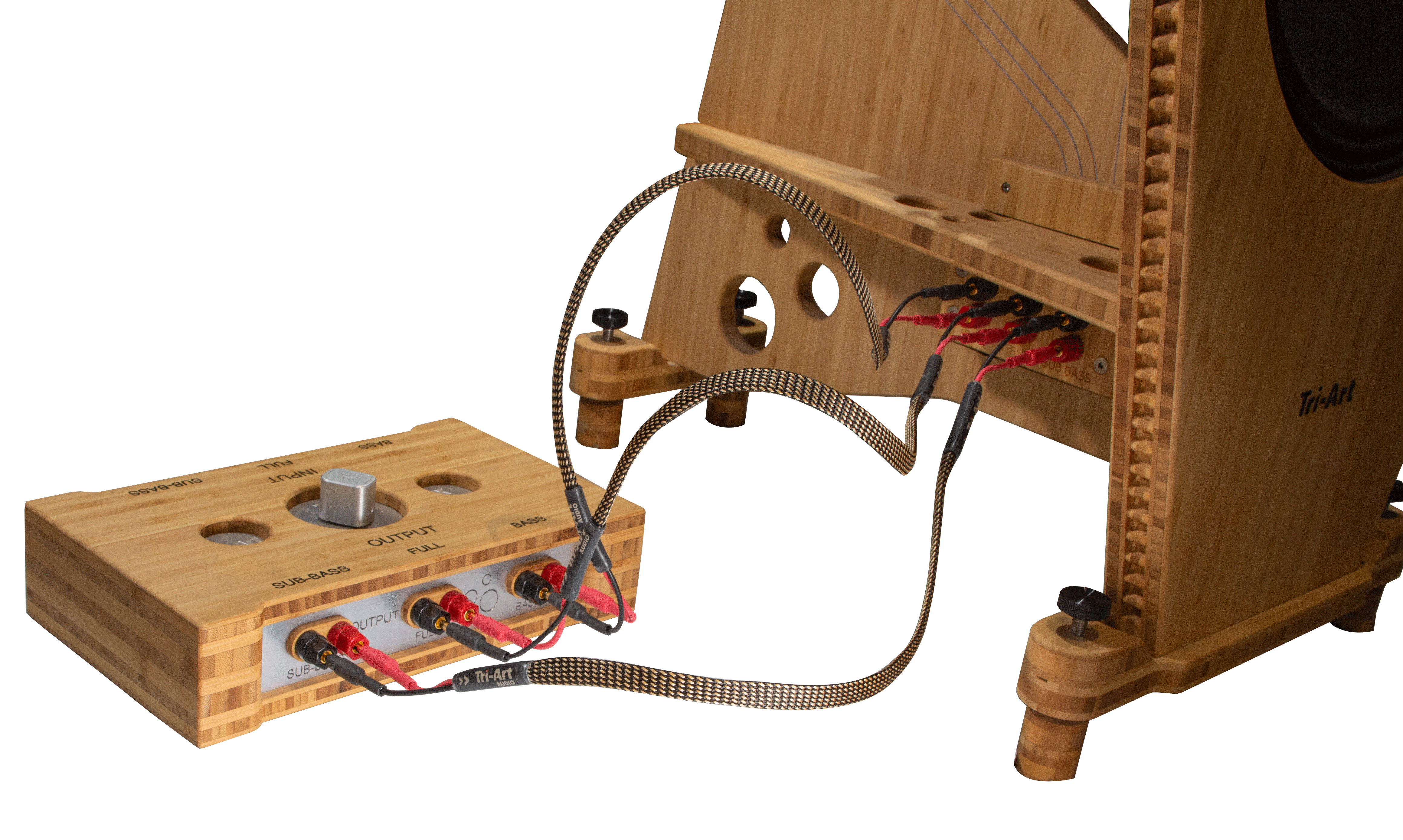

Crossover Details (Optional)

Inputs: 2

Adjustable Volume Control for Full Range Speaker Section: Crossover Only

Outputs: 3

Cables: Set of 0.5-meter jumper cables with banana plugs.

Output 1 (Full Range)

100-Watt Attenuator

47-Ohm Resistor

100 Hz Single Cap Filter

Output 2 (Bass)

Single open-air inductor filter 100Hz @ 1^st Order 6 dB Slope

Output 3 (Sub Bass)

Single open-air inductor filter 50 Hz @ 1st Order 6 dB Slope

Mode: Floor Standing

Finish: Bamboo Laminate Soaked in Hemp Oil

Stands: Bamboo Stand with 4 Brass-Collared, Bronze Spikes with Bamboo Spike Cups

Dimensions

H: 62.0" (157.48cm) W: 19" (48.26cm) D: 16.25" (41.27cm)
