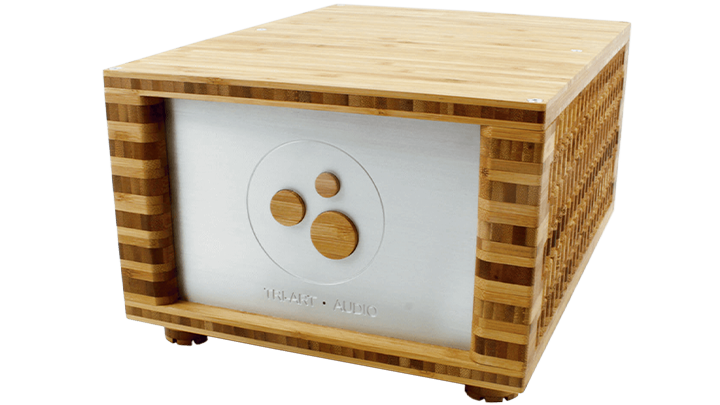

B-Series 60 Watt-S Amplifier

9395

Comes with a 24 Volt Linear Tube Buffered Power Supply


Power: 60W per Channel Continuous @ 8?

Class: Class D, Single Ended

Power Supply: 24 Volt DC 5 Amps, Linear Tube Buffered

Tube: One (1) NOS GE 5670

Gain: Three Position Gain Selector Switch for Tube Output

Shield: Copper Sleeve Tube Shield

Input: RCA and Balanced XLR Inputs

Output: Gold Plated Stereo 5-Way Binding Post

Dimensions

W: 9" (22.86cm) H: 5.5" (13.97cm) D: 12" (30.48cm) Weight: 4.6kgs (10lbs)

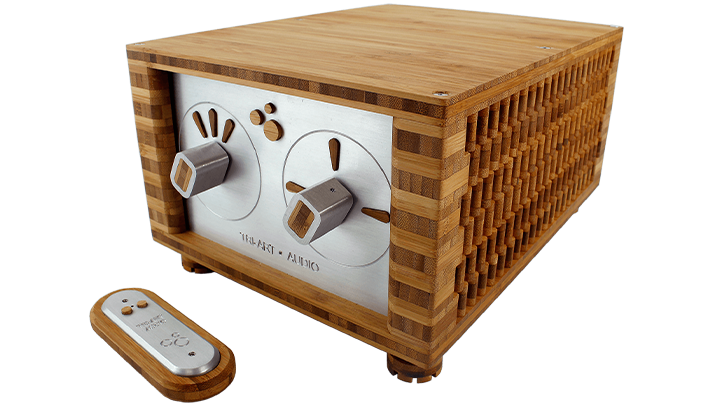

Integrated

?Power: 60W per Channel Continuous @ 8?

Class: Class D, Single Ended

Power Supply: 24 Volt DC 5 Amps, Linear tube buffered

Tube: One (1) NOS GE 5670

Gain: Three Position Gain Selector Switch for Tube Output

Shield: Copper Sleeve Tube Shield

Pre-Amp: Pre-Amp Section Shunt Resistor Design

Headphone: 6.3mm (1/4") jack with built in Headphone Amplifier

Input: Three (3) Stereo RCA Inputs

Balanced: Two (2) Passive Isolating Transformers for Balanced Signal Input through RCA

Output: Two Stereo Gold Plated 5-Way Binding Post

Cabinet: Bamboo with 1/4" Anodized Aluminum Face Plate

Remote: Bamboo Encased Remote Control Included
