Byson Channel Support Clamp Sets - Pack of 5 Sets
Byson Channel Support Clamp Sets - Pack of 5 Sets
Available in stock (16)
-
The Byson Channel Support Clamp Set is the perfect, easy to install solution for
- Robust mounting of channel members
- Connecting channel members and bends

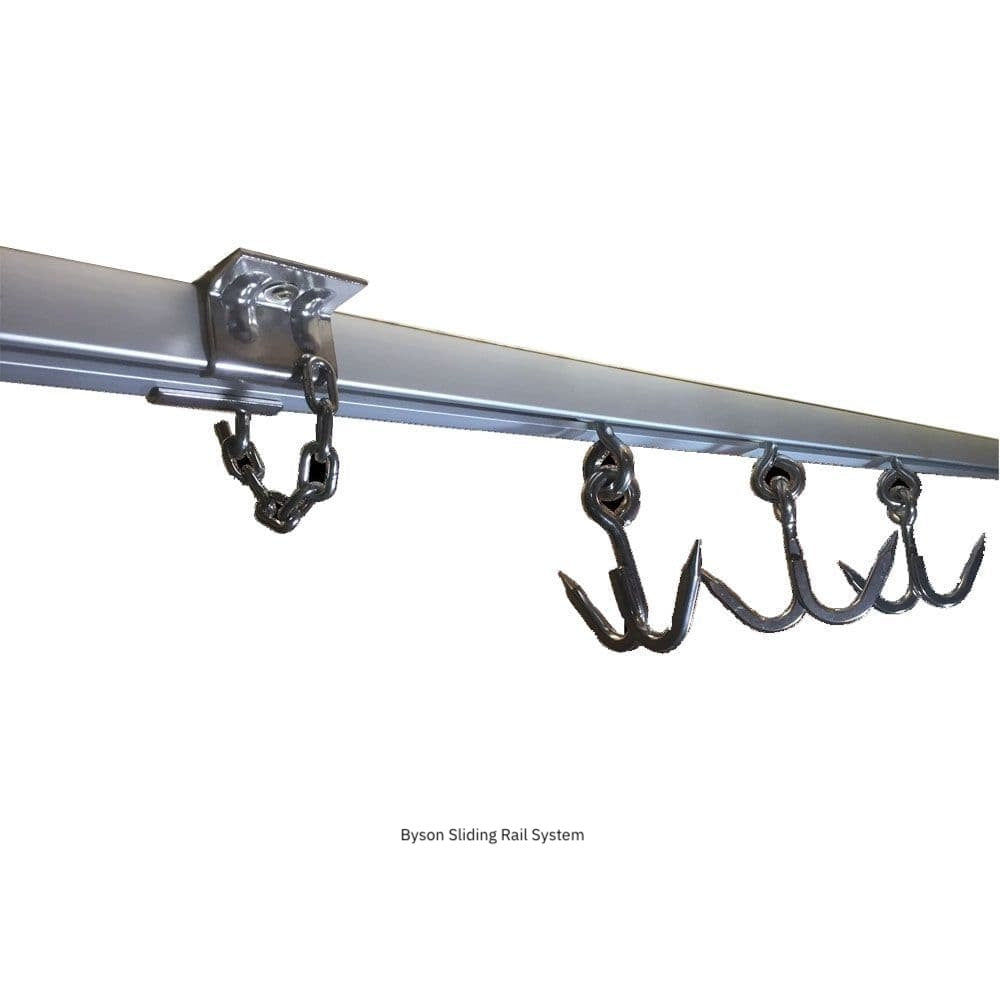

- Enabling seamless movement of sliding elements along the channel
- Typical applications include ceiling mounted meat hanging systems / kits
- Supports 400-500lb load (evenly distributed) per 2 Support Clamp Sets
-
Specifications:

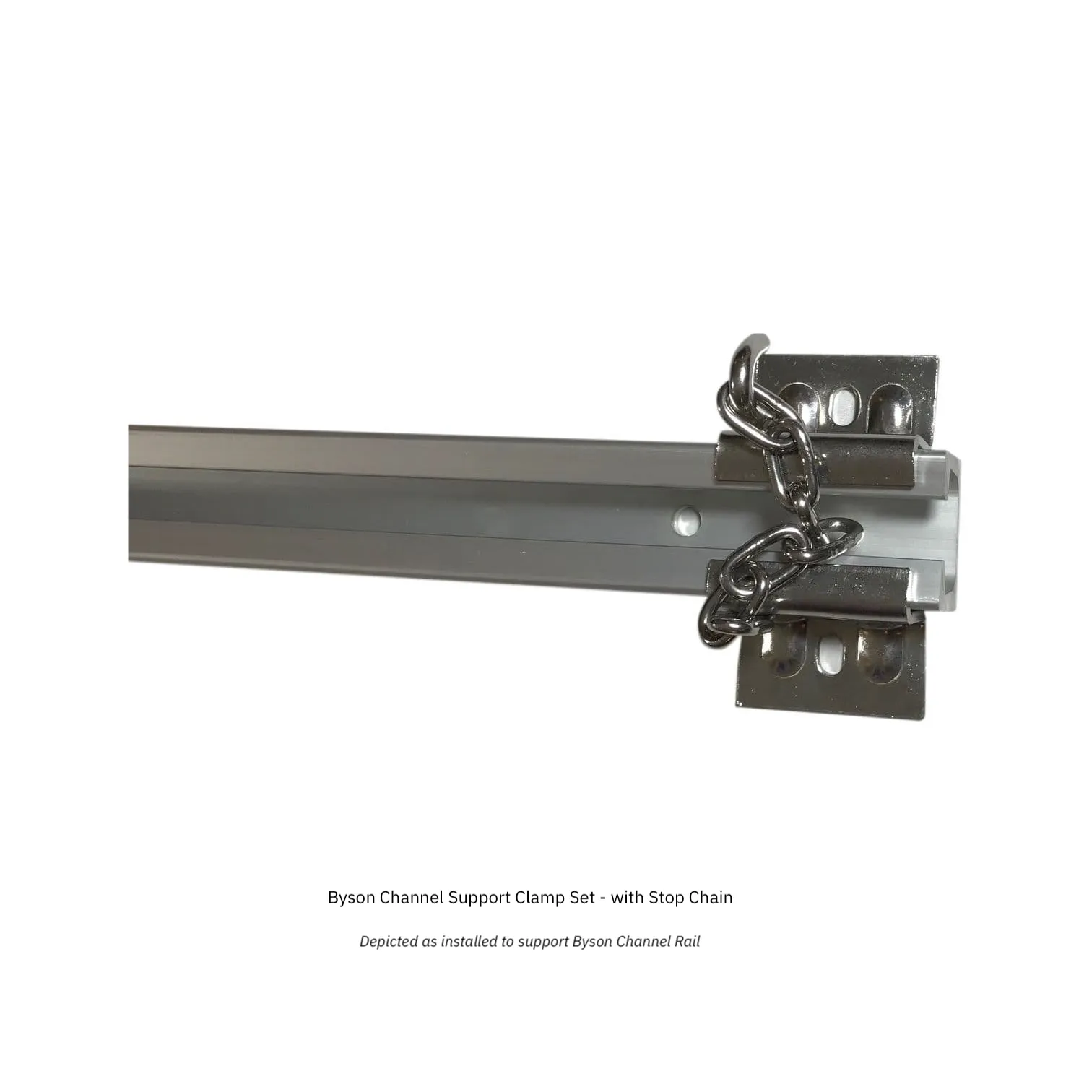

- Each Support Clamp Set comes with 2 pieces, which are installed to support a channel as shown in the images

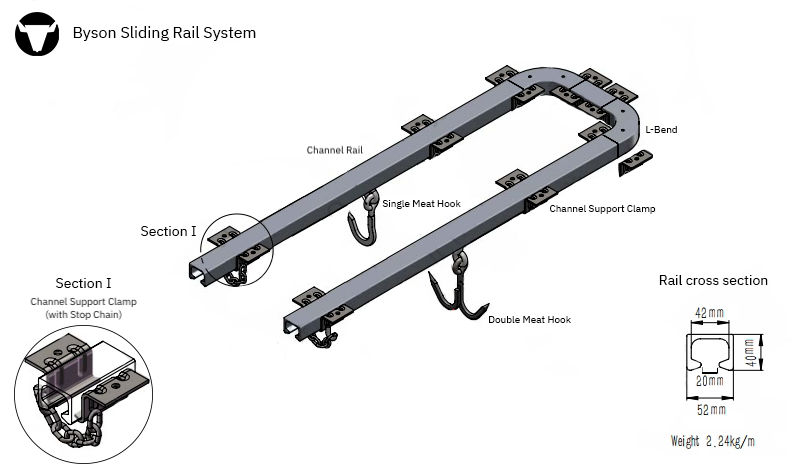

- Designed for use with a 40mm height x 52mm width channel, opening of 20mm (as shown)

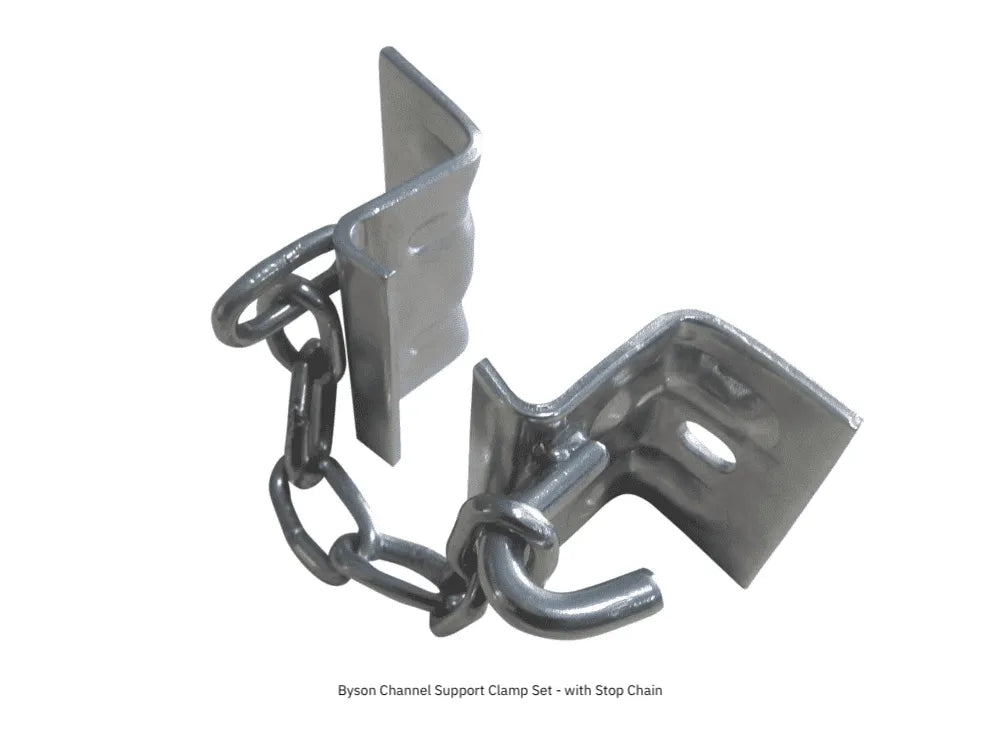

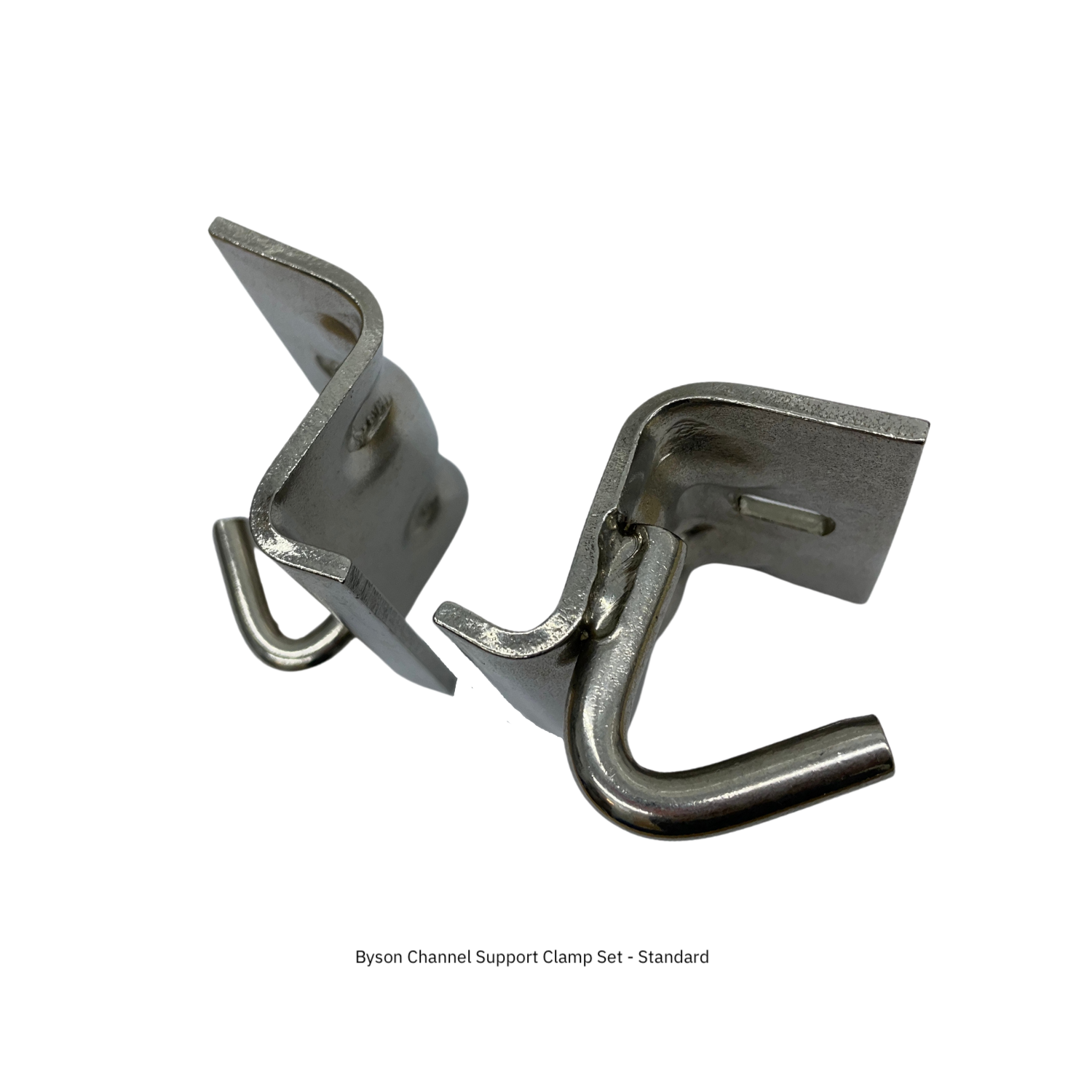

- Two types: with and without Stop Chain. Stop Chain type is usually used at the ends of a channel, to prevent sliding elements from falling out

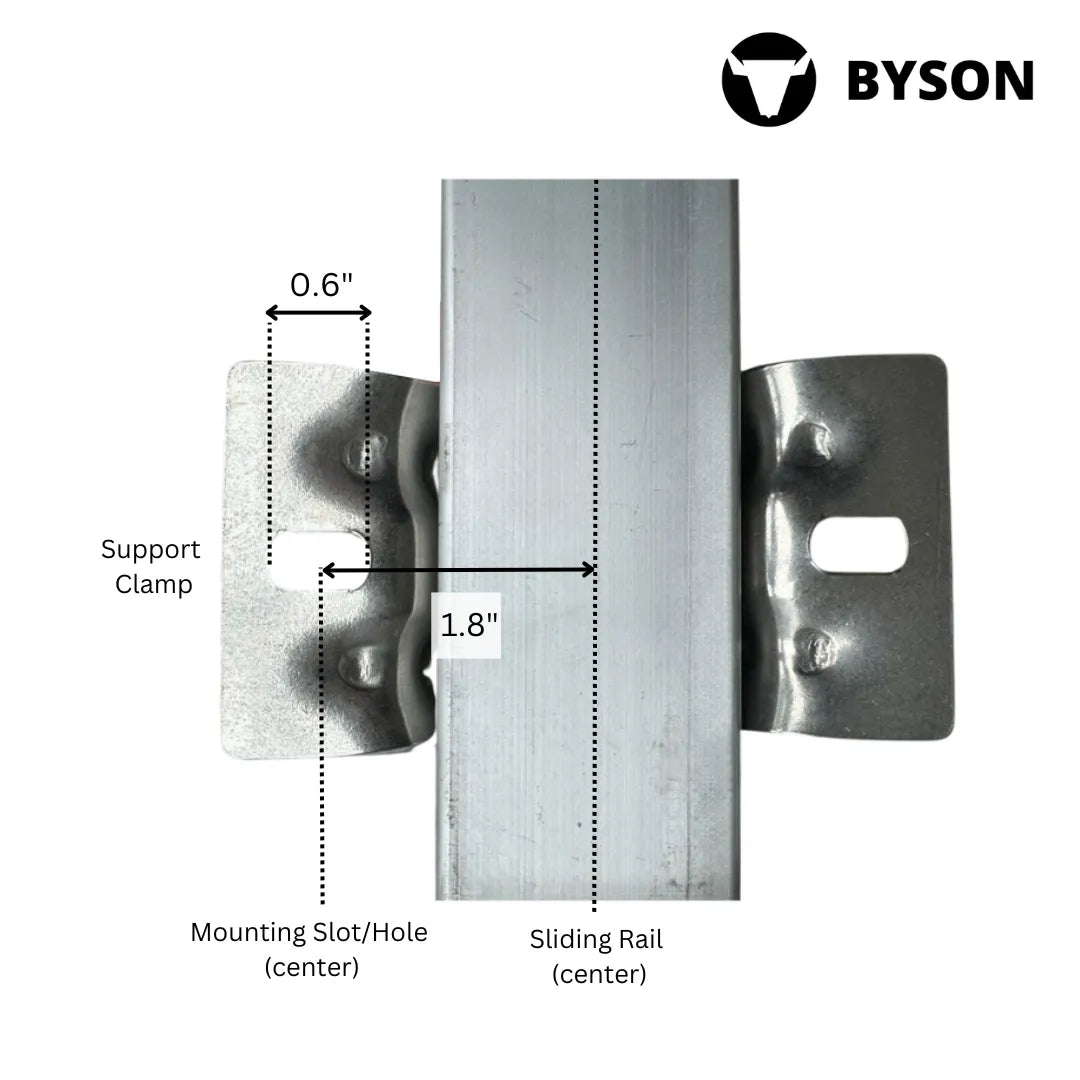

- Installation hardware not included, as is dictated by site conditions. Common hardware includes 2 x 5/16" (M8) bolt (length as per site conditions) + nut and 4x washers per Support Clamp Set
