Byson Sliding Rail Custom Systems

See our products in action at client facilities – view real installations here

Byson Sliding Rail Complete Custom Systems (for smaller orders of individual components click here)

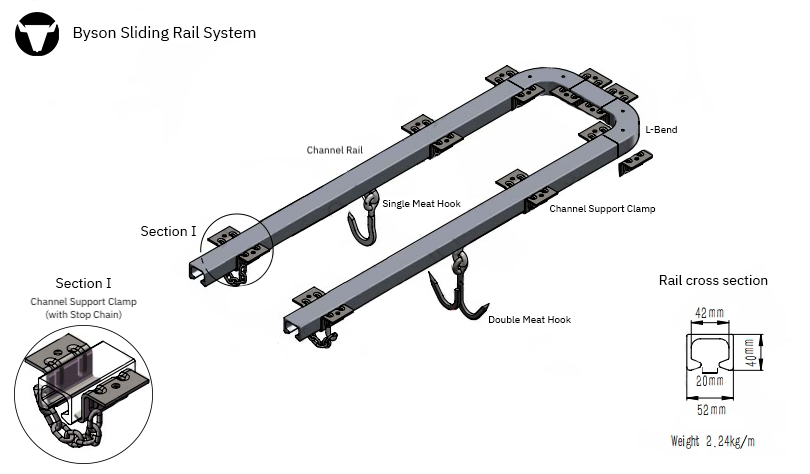

System Overview

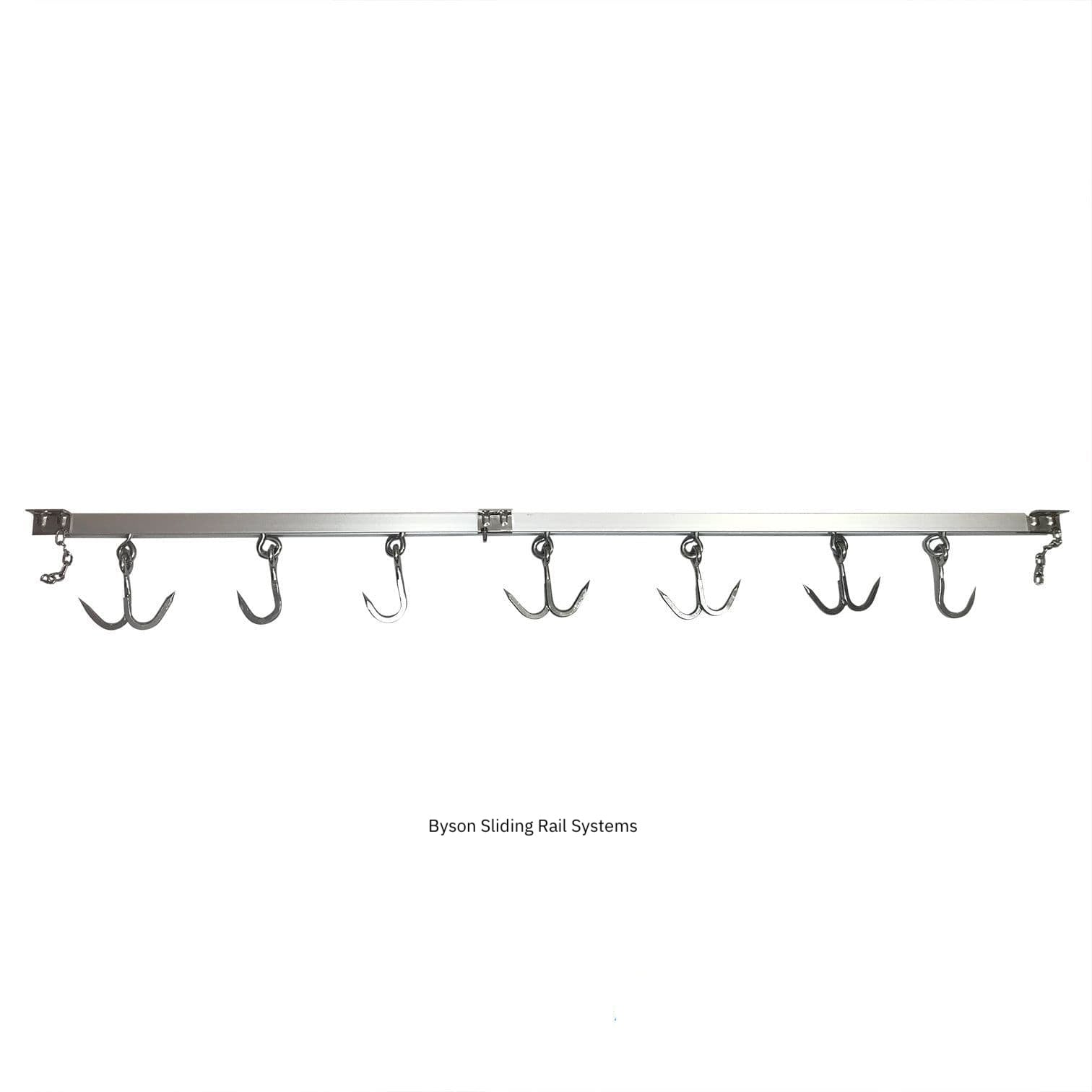

• The Byson Sliding Meat Rail System is the perfect modular, easy to install DIY solution for ceiling mounted meat hanging applications
• Ideal for meat processing, transfer from loading areas / kill rooms to walk in coolers, as well as storage in walk in coolers / cold rooms or refrigerated trailers (reefers) for mobile butchers / meat transport
• Perfect for all kinds of meat including beef, goat, lamb, deer, elk, etc. for butchers, hunters, homesteaders and more
• Supports 400-500lb load (evenly distributed) per 2 Support Clamp Sets over a  32" (maximum) section

Benefits

• Create any system layout, from straight runs to U-shaped (for FIFO processing), L-shaped, S-shaped, and more
• High strength, lightweight components
• Easy to customize and install - requires two people and basic tools / hardware
• Can mount flush to ceilings for maximum available hanging height
• Modular, allowing for staged expansion or modifications
• Easy to use, featuring frictionless sliding even with heavy loads
• Clean, premium aesthetic
• Maintenance free teflon based sliding system (no rolling parts)

Components

Select as required to build your own custom system:

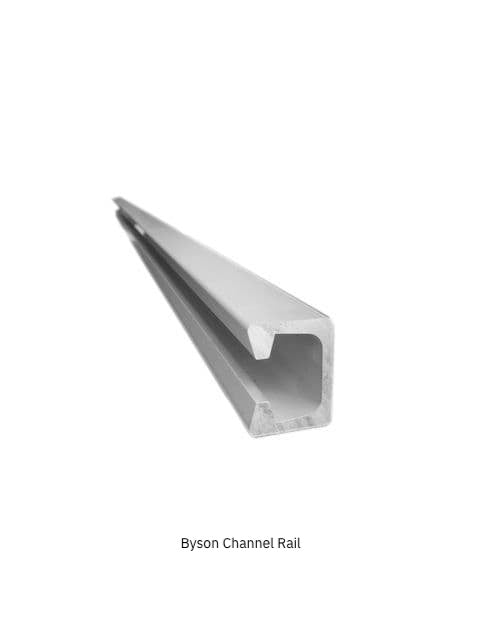

• Byson Channel Rail - available in 3.25ft or 6.5ft lengths
  • Anodized aluminum
  • 5mm thick x 40mm height x 52mm width

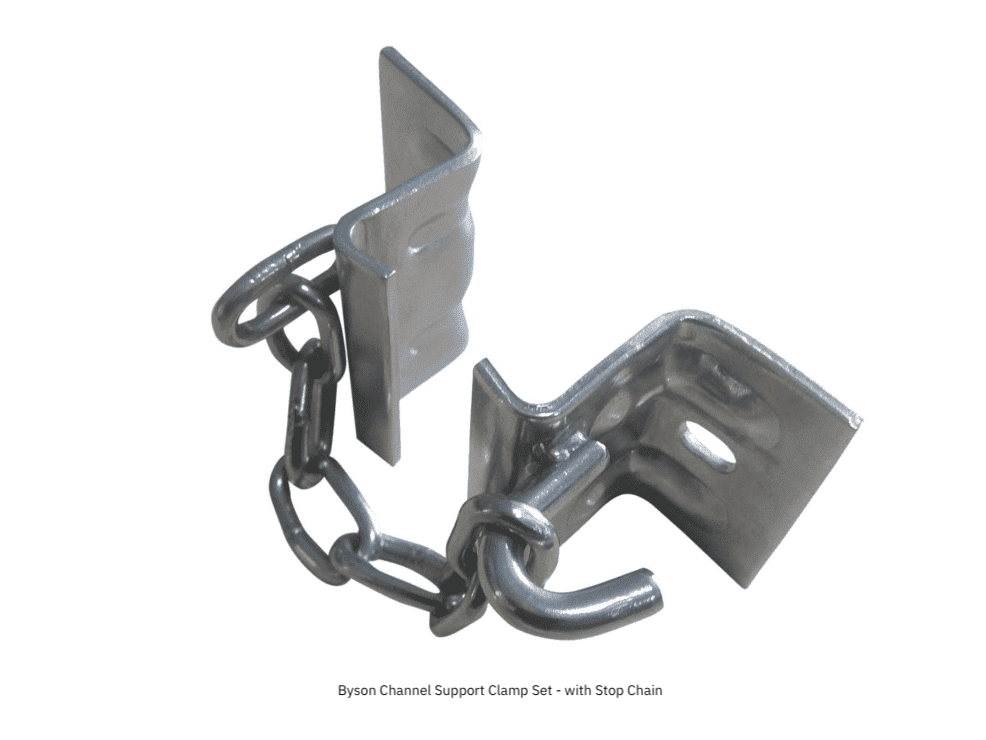

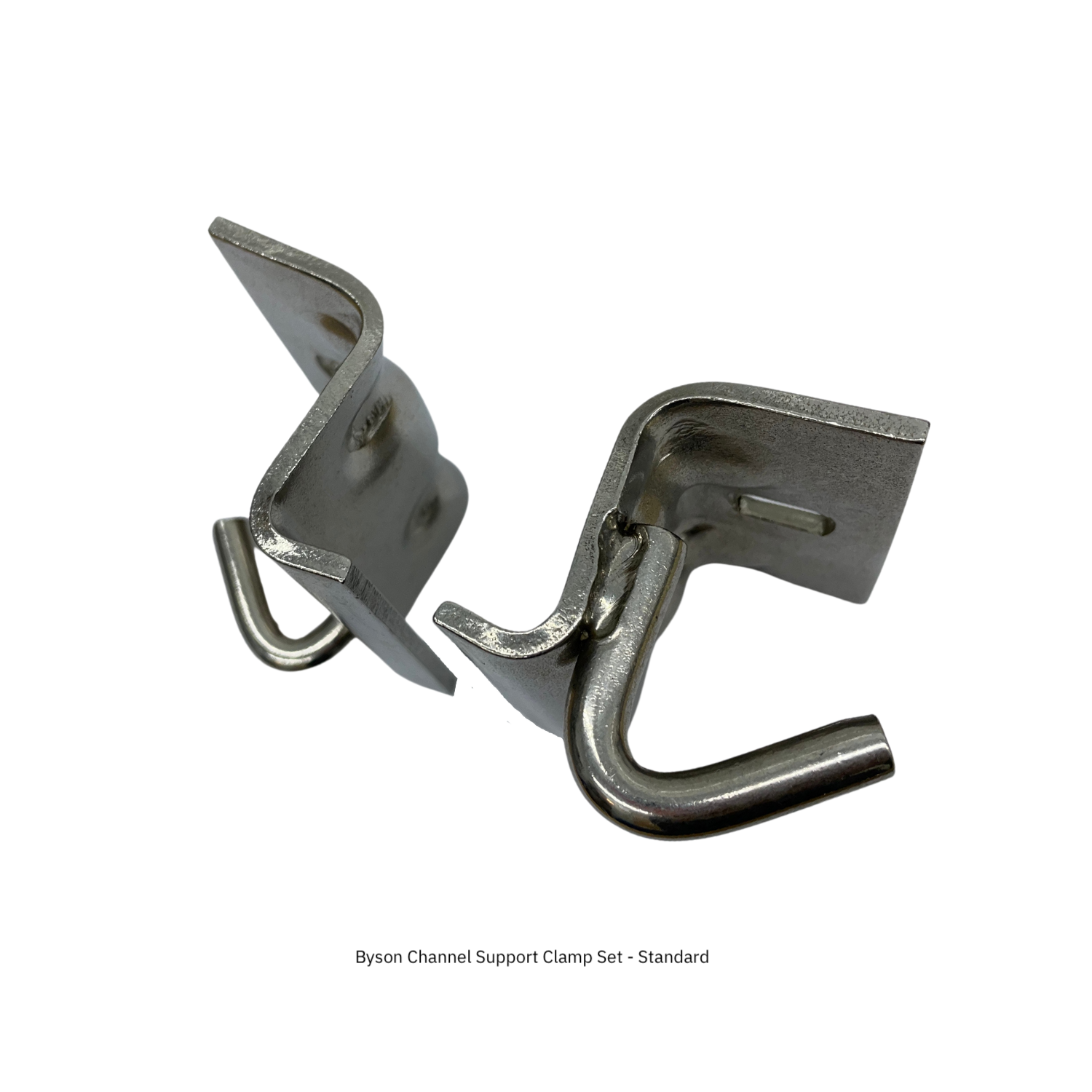

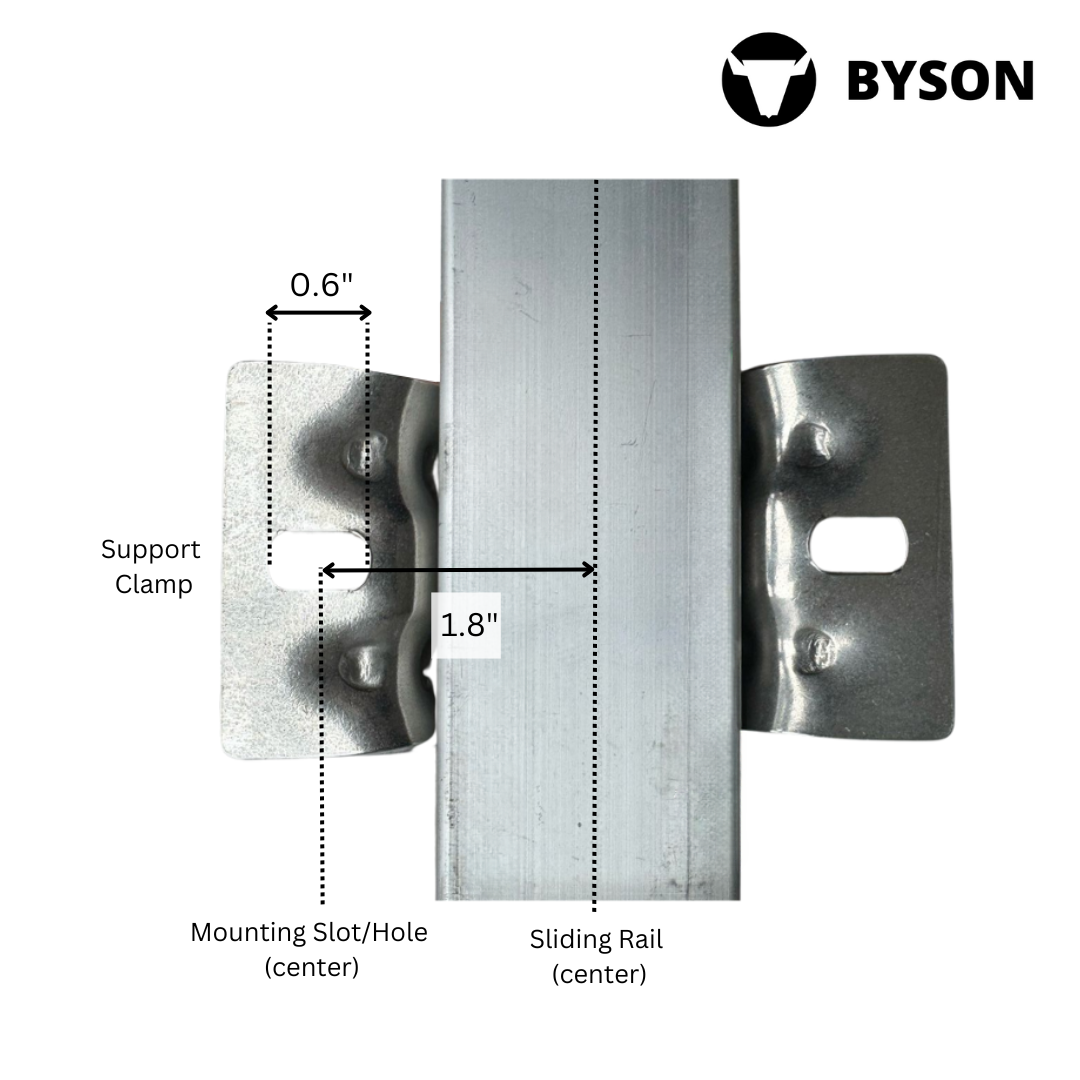

• Byson Channel Support Clamp Sets, stainless steel

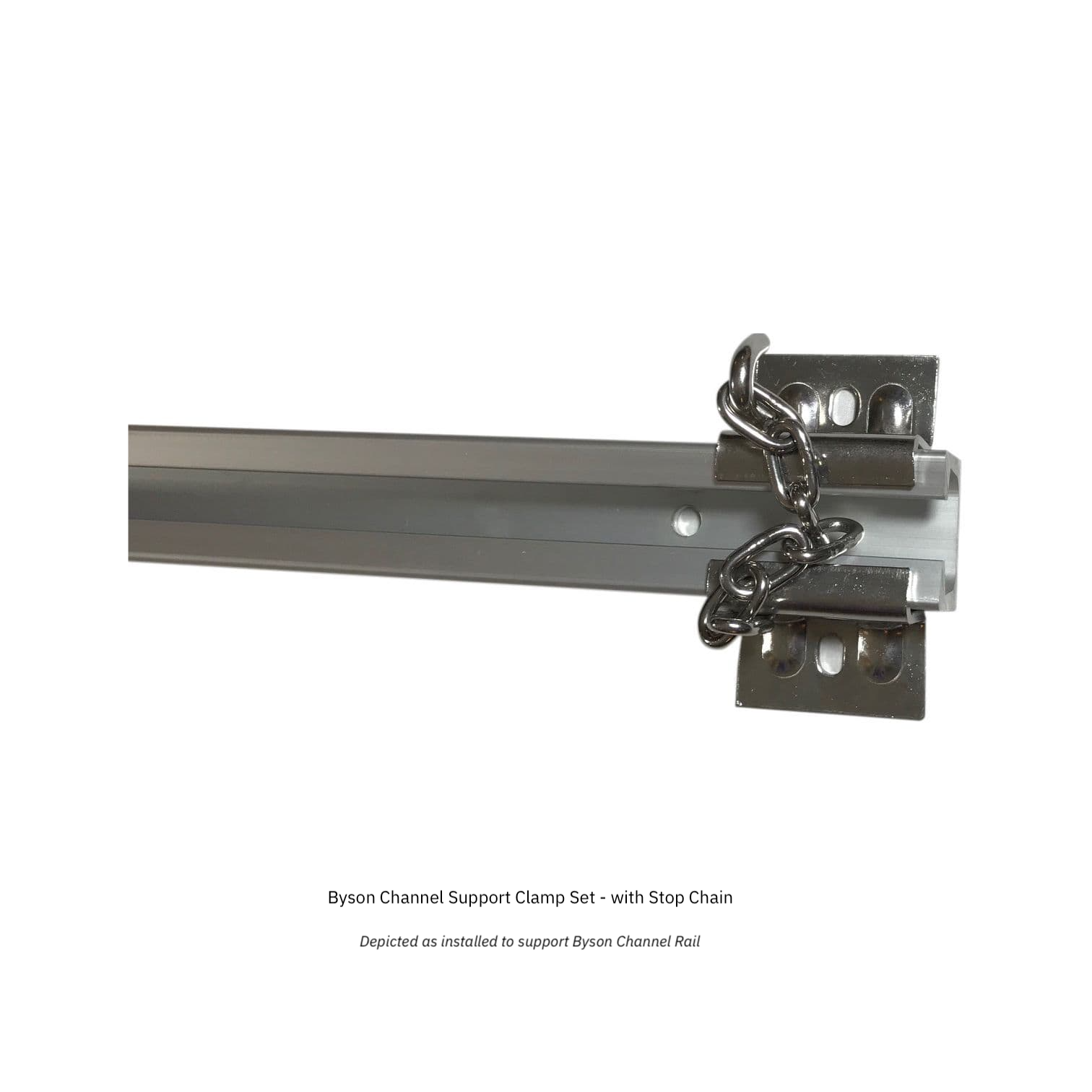

  • Available with Stop Chain (usually used at ends of rail system to stop hooks from sliding out) or without Stop Chain (Standard)
  • Installed at ends of rail system, all join points of Channel Rails / Bends, and as required throughout system to ensure spacing of 24"-32" is maintained
  • Enable a modular approach to build longer systems

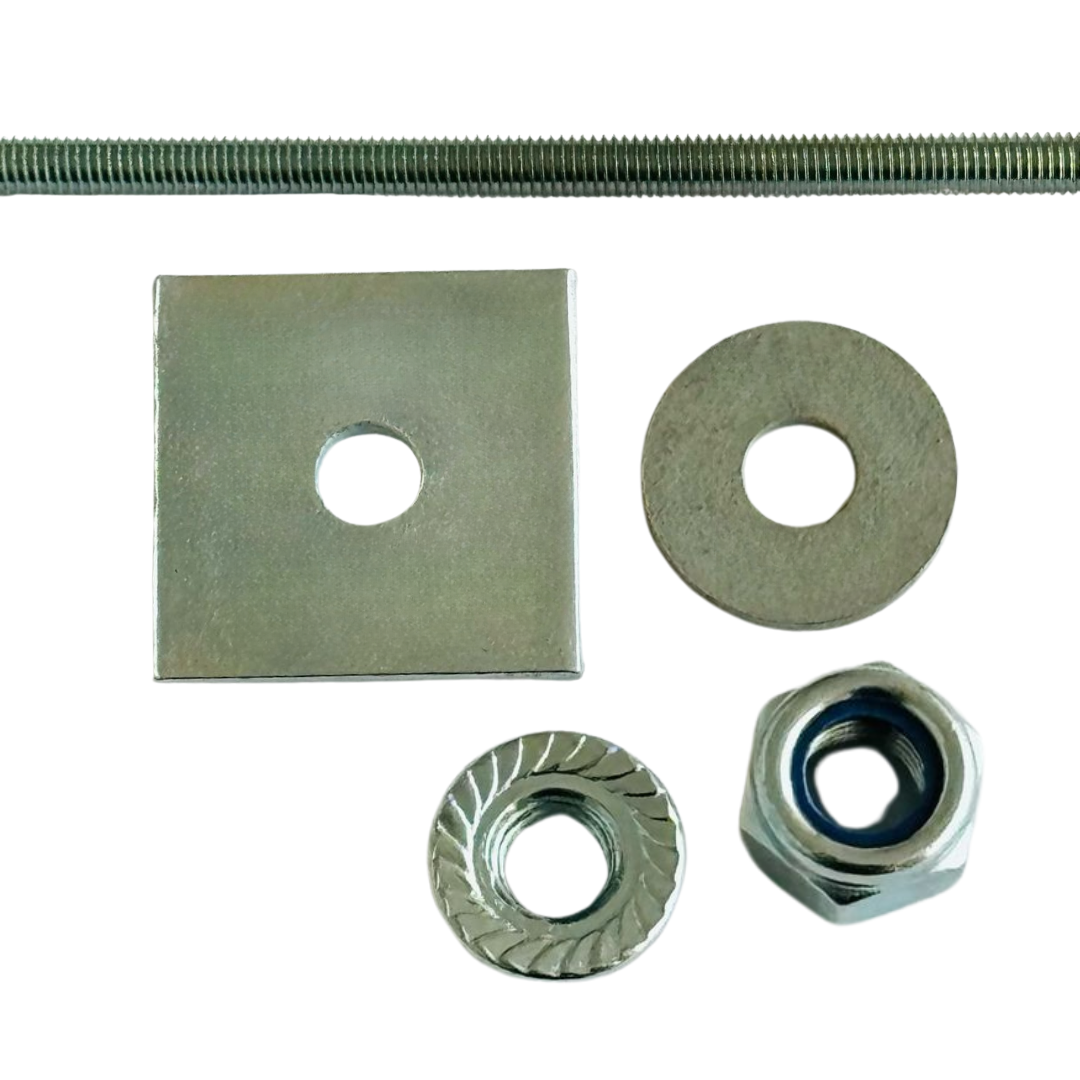

• Byson Mounting Hardware Set for Channel Support Clamp Sets, Stainless Steel
  • 1 Hardware set requires per 1 Support Clamp Set
  • Includes 5/16" stainless steel hardware - 2x 10" threaded rods, 2x square plate washers, 2x penny washers, 2x lock nuts, 2x hex nuts

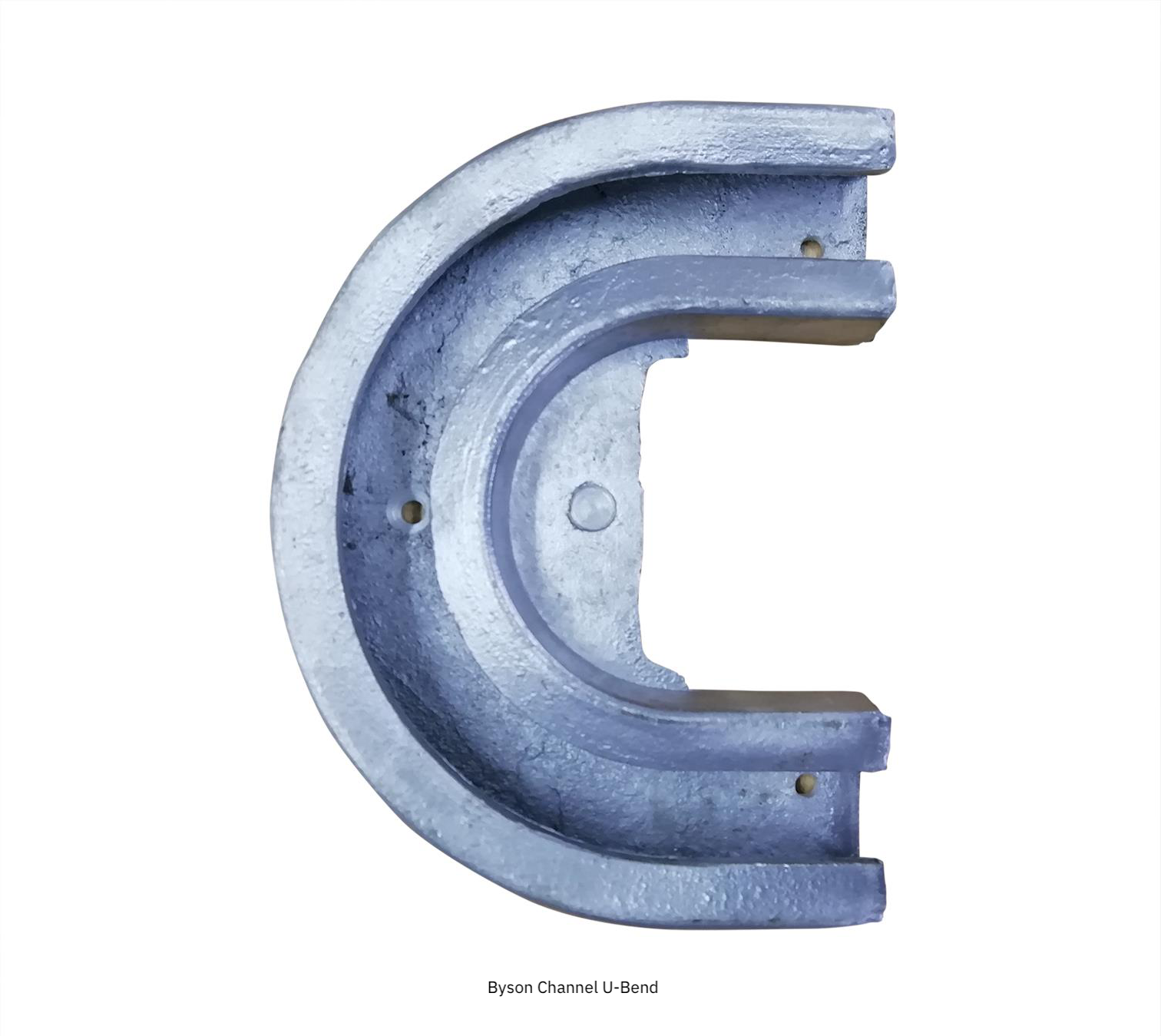

• Byson Channel Bends, cast aluminum - available in L or U shape

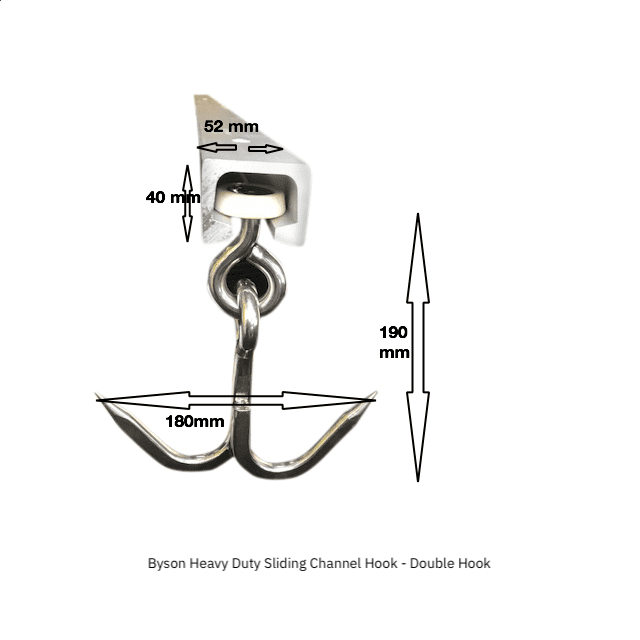

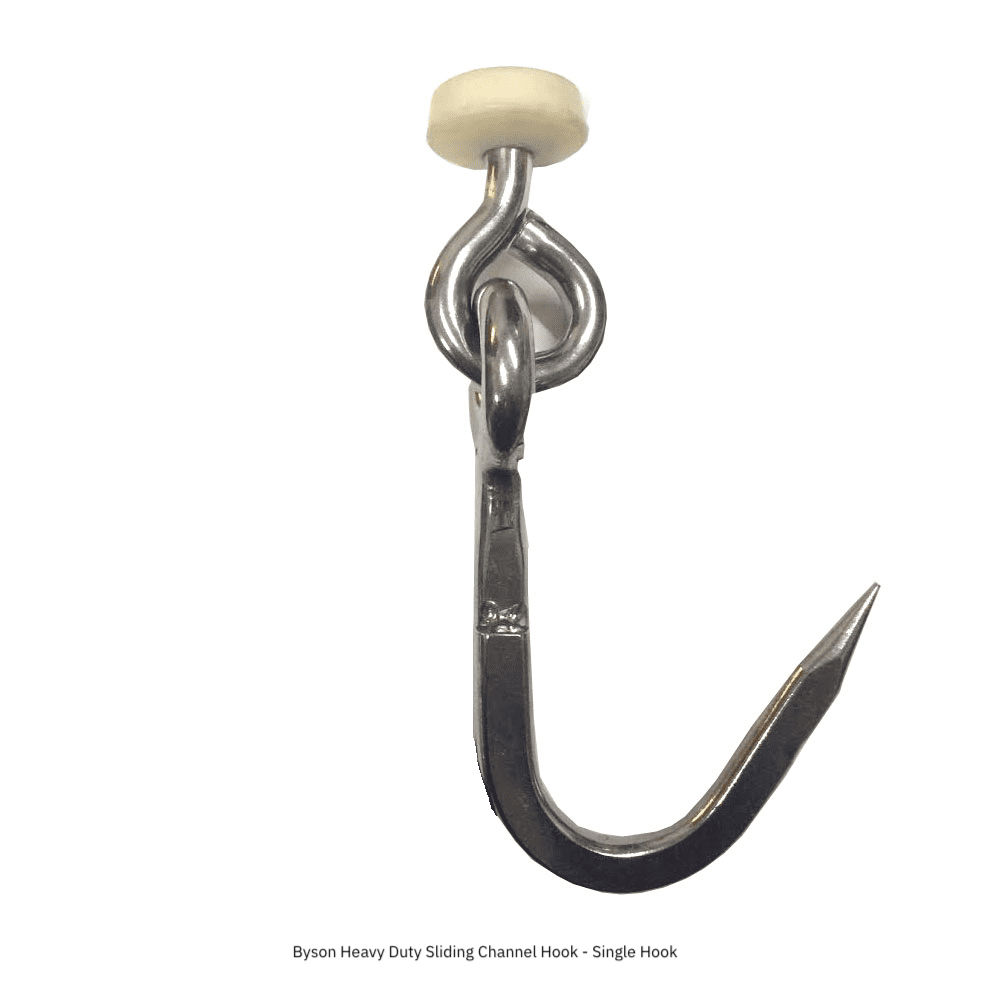

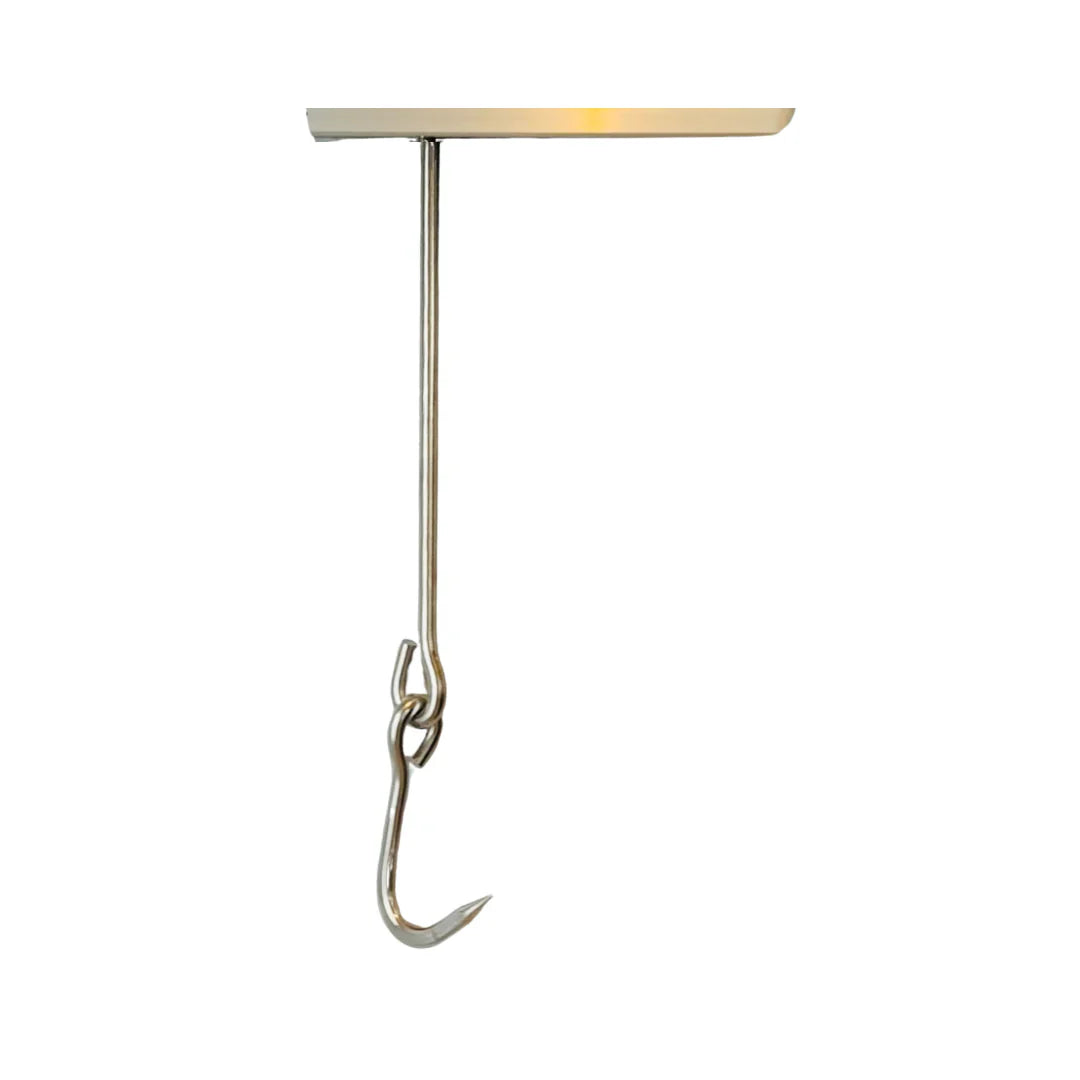

• Byson Heavy Duty Sliding Channel Meat Hooks, stainless steel
  • Single or Double Hook

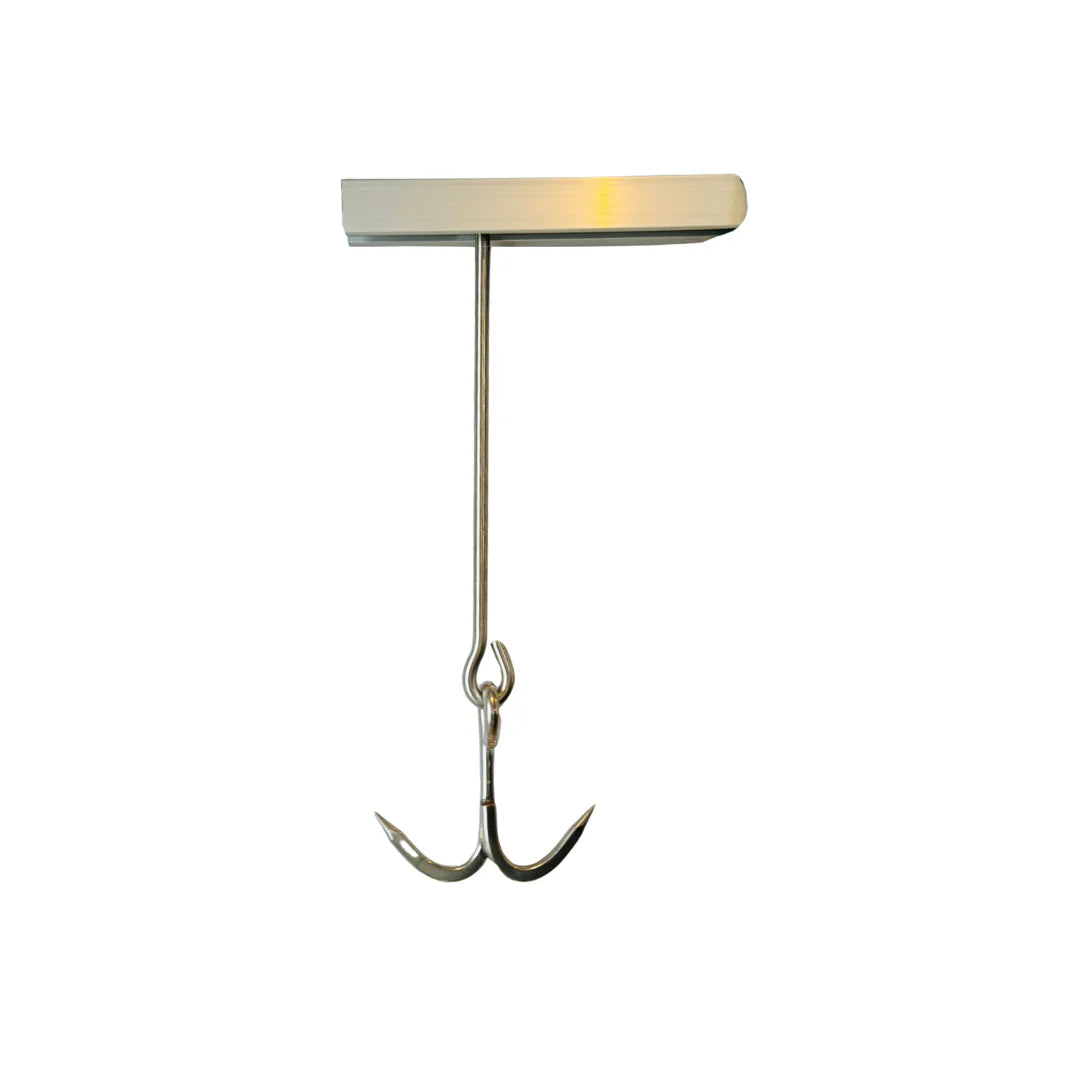

  • Lengths of Standard (7.25", for 7-8' ceilings) or Long (22.5", for 9-10' ceilings)

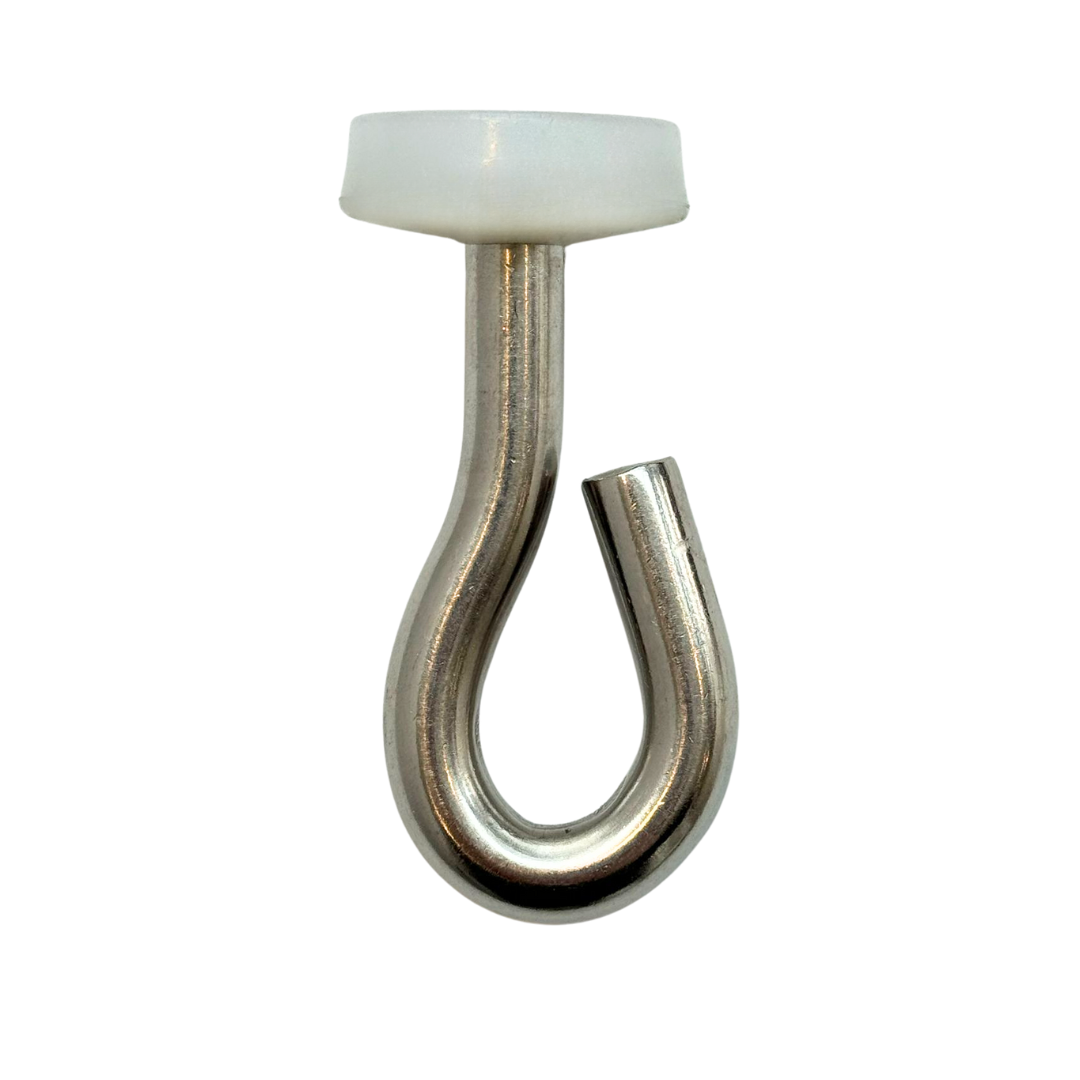

• Byson Heavy Duty Sliding Eyelet, stainless steel

Custom design support services

• Byson's experts in walk in coolers, cold rooms, kill rooms and reefers are ready to support your design efforts for any custom kit / systems or requirements
• Contact us for support in designing complete truck mounted systems for mobile butchers / meat transport, including the rail system and the support structure
• Design sketches and Bills Of Material provided as required
• See example installs at client facilities here

Additional information

• Shipping quoted separately - contact us to learn more
• Please contact us if the item you are interested in shows out of stock


Downloads

• Installation Guidance
