P-Series 35 watt Receiver (USA Can)

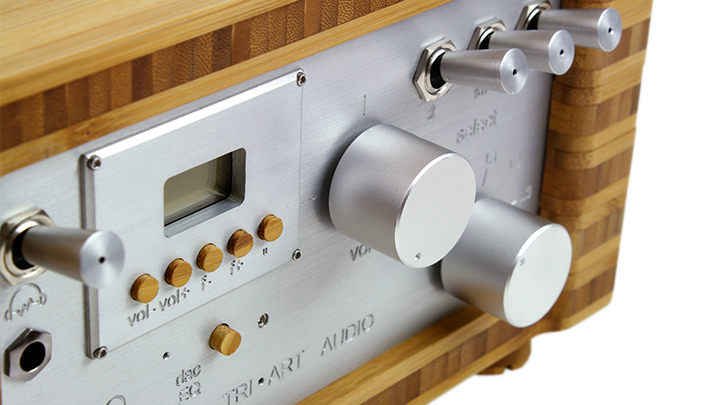

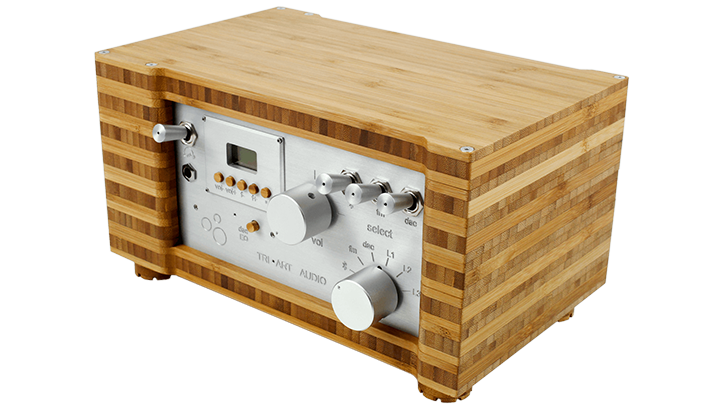

The P-series 35 Watt Receiver is an all-in-one integrated amplifier beautifully presented in its bamboo enclosure with anodized brushed aluminum faceplate, this sleek design fits perfectly in your living room or office space. This entry level product can do it all! Play all your digital audio files from your phone or computer to your system with its built-in Bluetooth receiver. Comes with a bamboo encased remote control.

Power: 35W per Channel Continuous @ 8Ω

Class: Class D, Single Ended

Power Supply: 24 Volt DC 5 Amps

Pre-Amp: Pre-Amp Section Shunt Resistor Design

Selector: Features Separate Power Switches for Each Function (Blutooth, FM, DAC, Head Amp) to Prevent Unnecessary Power Consumption

Headphones: 6.3mm (1/4″) jack with built in Headphone Amplifier

Bluetooth: Yes

FM: FM Tuner with External Antenna

DAC: SPDIF & USB Features Separate Power Switches for Each Function (Blutooth, FM, DAC, Head Amp) to Prevent Unnecessary Power Consumption

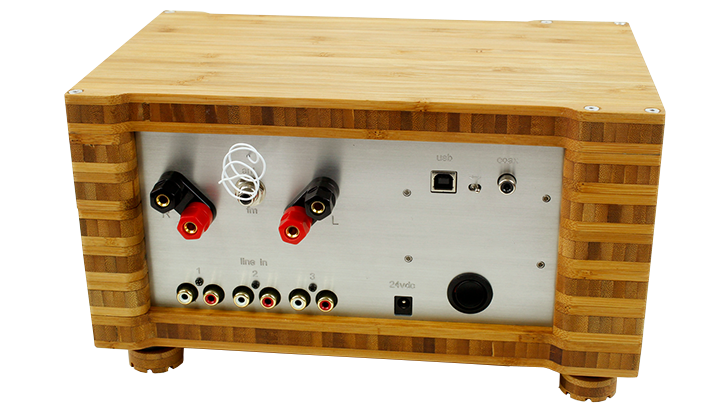

Input: 3 RCA, 1 USB (2.0 Type-B) <-toggle switch-> 1 RCA

Balanced: No

Output: Two Stereo Gold Plated 5-Way Binding Post

Cabinet: Bamboo with 1/4″ Anodized Aluminium Face Plate

Remote: Bamboo Encased Remote Control Included

Dimensions

H: 6.3″ (16cm) W: 11.2″ (28.5cm) D: 7.9″ (20cm) Weight: 3.1kgs (6.8lbs)

SPDIF & DAC

Savitech SA9037 USB Audio Processor

TI TPA6120A Dual Channel High Power Amplifier

USB Audio Class 1.0 24Bit/96KHz

High Voltage Output at 4.88Vrms Line Output

High Power Output at 2 x 350mW Low Impedance Output

0.5dB/Step Digital Attenuation

4 EQ Curve Settings (4 Digital Filter Settings for System Tuning)

LED Off: Short Delay Sharp Roll Off

LED Red: Short Delay Slow Roll Off

LED Blue: Short Roll Off

LED Purple: Sharp Roll Off

Phono Stage: No
