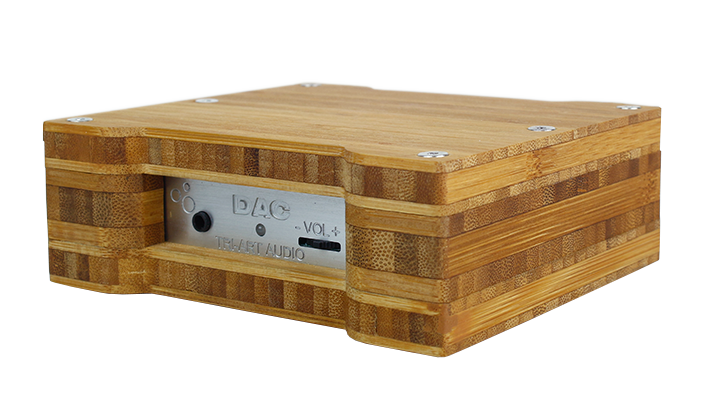

S-Series 2 Portable DAC

Digital Volume Control Allows the S-series DAC 2to Function as a Preamp, and Headphone Amp.

High Power Output: 350mW Each Channel

4 Digital Filter Settings for System Tuning

LED Off: Short Delay Sharp Roll Off

LED Red: Short Delay Slow Roll Off

LED Blue: Short Roll Off

LED Purple: Sharp Roll Off

Features Plug and Play Functionality

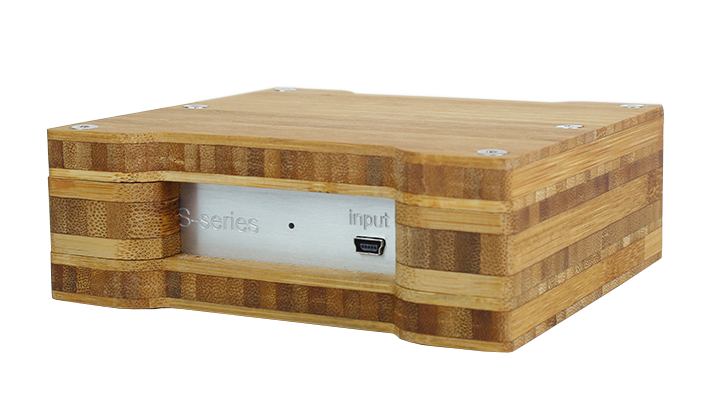

Input: Mini USB 2.0

Output: Mini Stereo Headphone Jack

Savitech SA9037 USB Audio Processor

AKM AK4490 High Performance DAC

TI TPA6120A Dual Channel High Power Amplifier

USB Audio Class 1.0 24 Bit/96KHz

High Voltage Output at 4.88 Vrms Line Output

High Power Output at 2 x 350mW Low Impedance Output

0.5 dB/Step Digital Attenuation

USB 2.0 Mini USB Cable

Mini Headphone Jack to RCA Cable
