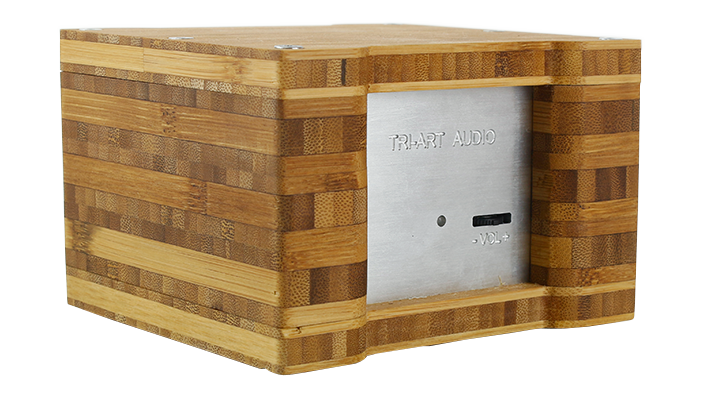

S-Series SPIDIF DAC
S-Series SPIDIF DAC
EQ MODE
4 Digital Filter Settings for System Tuning
INPUT
SPDIF (RCA) or USB-B
OUTPUT
1 Stereo RCA
FEATURE
Plug and Play Functionality
HIGH POWER OUTPUT
350mW Each Channel
full specs
Digital Volume Control Allows the S-series SPDIF DAC to Function as a Preamp, and Headphone Amp.
High Power Output: 350mW Each Channel
4 Digital Filter Settings for System Tuning
LED Off: Short Delay Sharp Roll Off
LED Red: Short Delay Slow Roll Off
LED Blue: Short Roll Off
LED Purple: Sharp Roll Off
Features Plug and Play Functionality

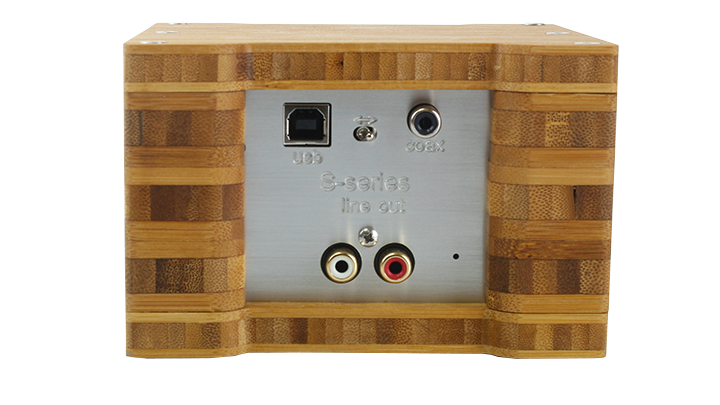

Input: SPDIF (RCA) or USB-B
Output: Left and Right Female RCA
Power Supply
5V DC Linear Power Supply
Savitech SA9037 USB Audio Processor
AKM AK4490 High Performance DAC
TI TPA6120A Dual Channel High Power Amplifier
USB Audio Class 1.0 24 Bit/96KHz
High Voltage Output at 4.88 Vrms Line Output
High Power Output at 2 x 350mW Low Impedance Output
0.5 dB/Step Digital Attenuation
Included
USB 2.0 Cable A-Male to B-Male
1 Meter RCA Stereo Interconnect
