S-Series TA-0.5 Turntable/9" Arm (USA ,Can)
S-Series TA-0.5 Turntable/9" Arm (USA ,Can)

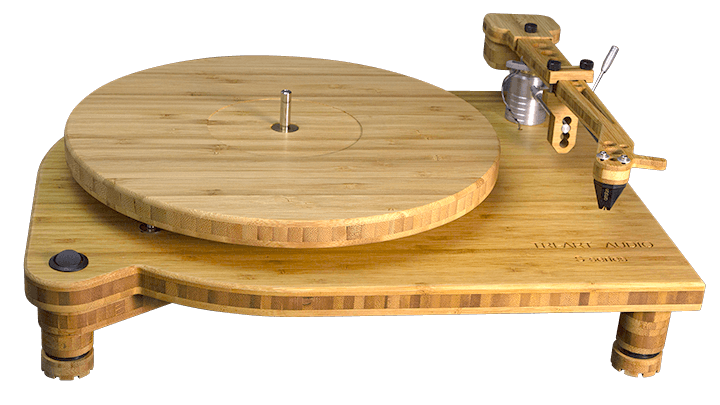

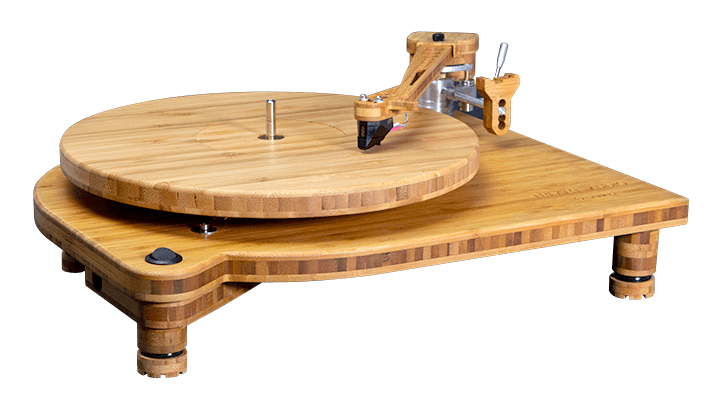

The S-Series TA-0.5 Belt Drive Turntable is available in two models. Our standard model, #18395 is equipped with a standard 9″ bamboo tonearm. Our model #20489 is a fully equipped turntable model, complete with standard 9″ bamboo tonearm, mm-cartridge (elliptical) and an integrated mm-phono section. The phono section has a bypass switch to be used with an external phono stage. Both versions feature a bamboo plinth soaked in hemp oil, leveling legs, brass pulley, bronze collar spike bearing with an ABEC7 carbonized ceramic ball bearing, removable spindle and an aluminum sub platter with bronze shaft.
Turntable Details
Plinth: 3 Ply Bamboo laminate 19.05mm (3/4″)
Motor: Single 24 Pole Synchronous AC Motor
Pulley: Brass Pulley
Speed: 33.3 & 45 rpm
Drive: Belt Drive
Platter: 3-ply Bamboo Laminate 19.05mm (3/4″)
Spindle: Removable Spindle Cover
Sub Platter: Aluminum Sub Platter with Steel Shaft
Legs: Leveling Legs
Bearing: Bronze Collar Bearing with ABEC7 Carbonized Ceramic Ball Bearing
Dimensions: H 15.5cm x W 40.9cm x L 33.3cm / 8 1/4″ x 16″ x 32.39″
Arm Details

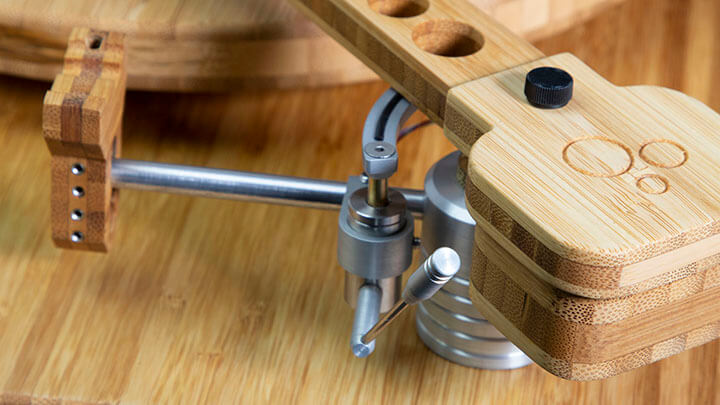

The S Series 9” (222mm) arm comes pre mounted on either version of the S series turntable. The tone arm features the same handmade bamboo design, soaked in hemp like our table design.
Material: Three Ply Bamboo Laminate 12mm
Settings: VTA & Azimuth Adjustments
Anti-Skate Adjust: Passive Anti-Skate
Bearing Assembly: Bronze with Brass Collar Spike and Synthetic, High Viscosity Grease Bearing
Arm Base: Bamboo Supports on Plinth
Wiring: Cardas Wire 33 AWG Uninterrupted from Headshell Clips to Brass Female RCA with Silver Plated Cartridge Clips
Level: Micro Bubble Level Included
Arm Length: 9″ / 222 mm
Tone Arm Mass: 10g
